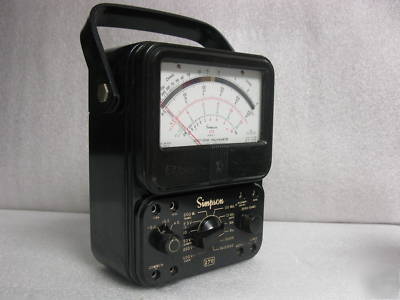

> Simpson 270 series 4 volt ohm milliameter **sale**
Simpson 270 series 4 volt ohm milliameter **sale**
Ranges 250mV, 1V, 2.5V, 10V, 50V, 250V, 500V, 1000V
Ranges 250mV, 1V, 2.5V, 10V, 25V, 50V, 250V, 500V, 1000V
Rated Circuit-To-Ground Voltage 1000V (AC or DC) max.
5 Ranges -20 to +50dB * Reference 0dB= 1mW into 600
Ranges 50 A, 1mA, 10mA, l00mA, 500mA, 10A
Voltage Drop: (Nominal) 250mV on 50 A , 1mA; 255mV on 10mA , 10A; 300mV on 100mA, 500mV on 500mA
Maximum Indication 0-2K , 0-200 , 0-20M

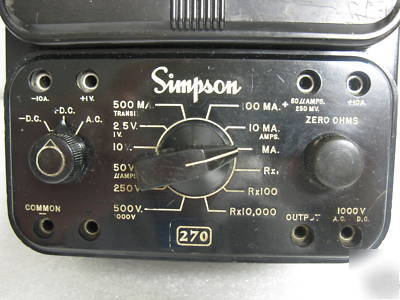

Controls Include: Ohms zero adjustment, AC - DC - Output, a 12 position Function / Range
selector switch, and eight recessed probe jacks.
