Yaesu fif-232C cat interface

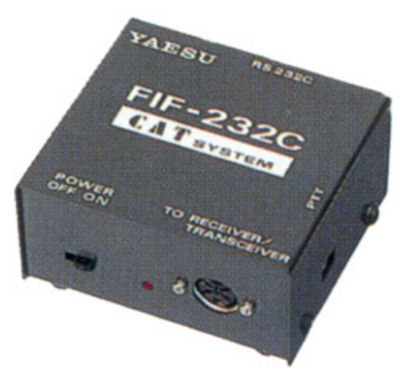

The Yaesu FIF-232C CAT is an outboard interface system required by some Yaesu models for interfacing the radio to a serial port of a PC. The FIF-232C converts TTL levels required by the radio to the RS-232C levels required by the computer. There is an input jack on the front and a PTT input jack on the right side. The front panel also has a power On/Off switch and a power LED. The rear panel has a RS-232C DB-25F connector. The FIF232C is 4 x 2 x 4 inches and operates from 117 VAC. Some of the Yaesu models that require this interface include: FT-650, FT-736, FT-747GX, FT-757GXII, FT-767GX, FT-840, FT-890, FT-990, FT-1000D, FRG-100, FRG-8800 and FRG-9600.
