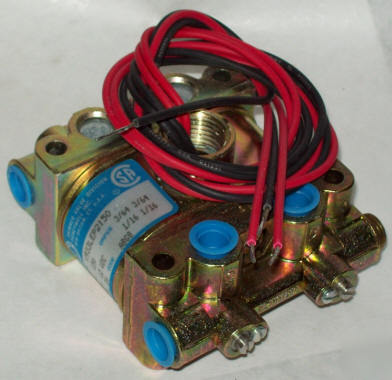

Skinner parker 4 way solenoid valve V933LEP2150 12 vdc
Skinner V9 Series Four Way Direct Acting Solenoid Valve
Part Number: V933LEP2150 12 VDC
Normally Closed - Normally Closed Neutral Position
General Purpose Solenoid Valve
Four-way, compact, direct acting large capacity valves are actually
two three-way valves packaged in one body. Diecast zinc body with
stainless steel internal parts.
Valve #1 Orifice Size: Inlet 3/64", Exhaust 1/16"
Valve #2 Orifice Size: Inlet 3/64", Exhaust 1/16"
Response time: Approximately 4-8 milliseconds
Coil Voltage: 120/60 Power Consumption: 10 Watts /Coil
Electrical Outlet: 1/2" Conduit
Valve #1 Cv Factor: Inlet 0.052, Exhaust 0.095
Valve #2 Cv Factor: Inlet 0.052, Exhaust 0.095
Service: General Service (air, inert gases, hydraulic fluids)
Options: Adjustable Flow at Both Inlets
Operation of Single-Acting Air and Hydraulic Cylinders
Operation of Double-Acting Air and Hydraulic Cylinders
Actuating Large Pilot Operated Valves
