Photodiodes and ldr linear opto-isolators reclaimed.

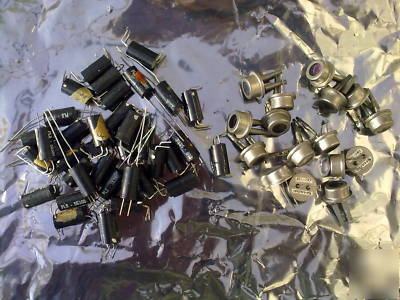

Lots of Sharp SBC-102 photodiodes and lots of linear type PLS5S380 opto-isolators.
Datasheets available here http:// /
Along with approx 33 opto-isolators, some new ones mixed in.
Opto-isolators use LED/Light Dependant Resistor combination to give large dynamic range linear transfer characteristic LED current Vs. LDR resistance. Ideal for hobbyist/experimentor.
Light-Dependent-Resistor-Output Optocoupler
P(D) Max.(W) Power Dissipation=100m
V(BR)Out Min.(V)Breakdown Volt=80
I(IN) Min.(A)Control In. Curr.=25m
V(IN) Min.(V)Control In. Volt.=2.0
r(on) Max.(ohms) On-state Res.=250
r(off) Min.(Ohms)Off-state Res=10M
Viso Max.(V) Isolation Voltage=10k
