New ge (gelcore) led pedestrian crosswalk lights - pair
One Set (two complete units)New PEDESTRIAN CROSSWALK LIGHTS, LED
These are new, never used, 16" x 18" insert modules that fit in the standard crosswalk signal box to upgrade from incandescent to LED.
These modules are about $150 each ($300 per box) when purchased from GE. We have lots of these. Here's a good opportunity to stretch a little of that city budget money.
High efficiency & long life LED light source
Failure of single LED in the icons results in loss of light from only that LED for pedestrian and hand symbols
Automatically adjusts to the programmed intervals of the traffic controller
Countdown module automatically adjusts to the programmed intervals of the traffic controller
Countdown module features programmed software to recognize pre-emption and pedestrian recycling
Dimensions, including a mechanical outline can be found at http:// /apo/products/lighting/led/downloads/RX11-Ped_16x18in_Ov-Ct-Dn_SSUSRX11PC7ITE_June-22-2007.pdf
* Operating Temperature Range -40 to +74 C (-40 to +165 F)
* Operating Voltage Range 120V (60Hz AC)
* Power Factor (PF) > 90 %
* Total Harmonic Distortion (THD) < 20 %
* Voltage Turn-Off (VTO) 45 V
* Lens & Shell Material UV Stabilized Polycarbonate
* Wiring 16 AWG, Color Coded with Strain Relief
* LED Color: Hand - Portland Orange, Person - Lunar White
* Luminous intensity ITE Pedestrian traffic control signal indication - Part 2: Light emitting diode (LED) pedestrian traffic signal modules section 4.1.1
* Chromaticity ITE PTCSI-STD - Part 2
* Moisture Resistance NEMA STD 250 Type 4 1991
* Mechanical Vibration MIL-STD-883 Method 2007
* Electronic Noise FCC Title 47 Sec 15 Sub. B
* Transient Voltage Protection ITE PTCSI-STD - Part 2
* Controller Compatibility NEMA TS-2-1992
* Wiring National Electric Code
We purchased these signs as surplus from a small city. They are NEW in box.
1 Pair (two light units) per box

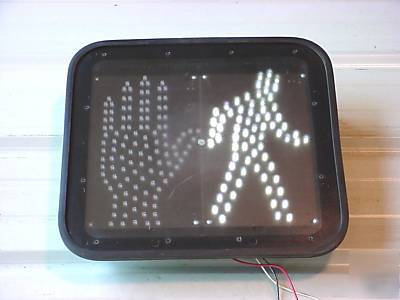

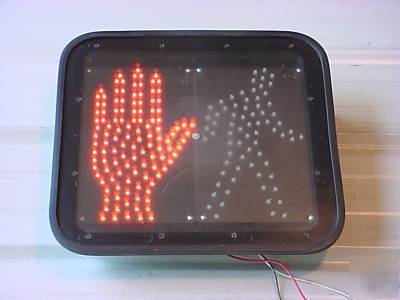

Photo shows one light unit with each separate side lit up.
Each light unit has both a walk and a don't walk light character.
