Locknetics smart push bar exit device 36" dk bronze
Schlage Locknetics Smartbar Model 692 x 36" New
Includes all the mounting hardware and manuals.

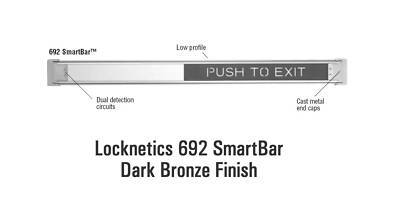

The First Picture is a Locknetics Photo.

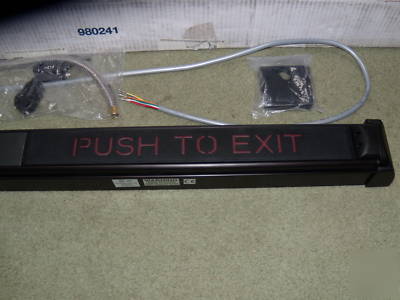

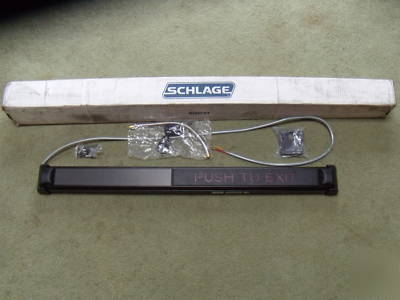

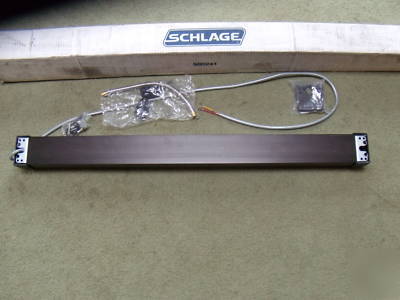

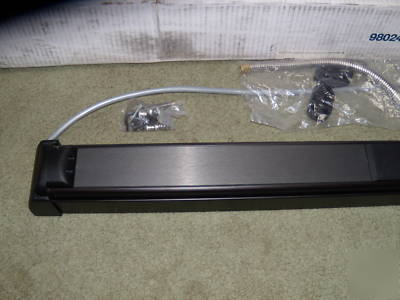

The actual color is Dark Satin Bronze (near black) see actual photos.
Heres a link to the Locknetics online literature http:// /pdf/EAC_section_H.pdf
Request To Exit SmartBar Touch Bar - Dark Satin Bronze Anodized Aluminum Finish, 36"
The 692 SmartBar is an electronic switching device with no moving parts, which serves as a non-latching request to exit bar at an egress door. It allows one motion egress at doors equipped with electromagnetic or electronic locks, with no prior knowledge required by the user. Touching the Smartbar at any point on the bar activates internal circuitry which controls power to the locking device. No moving parts results in low maintenance and long life.
The 692 SmartBar provides two directionally opposed infrared detection circuits to sense an exit request. As a person touches the bar the light beam is broken. The patent pending redundant system provides a high level of life safety and peace of mind to the end user.
An audible alarm is standard. This feature provides a security alarm to alert when there is a prolonged unlocked condition caused by a continued break in the light beam. This feature is desirable in applications requiring monitoring of security conditions or delayed egress.
* Dual infrared detection circuits patent pending
* No Moving Parts - One Motion Egress
* Audible alarm standard, alerts prolonged unlock condition
* DPDT relay standard - signals access control panel or auxiliary device
* Heavy duty aluminum extrusion with cast metal end caps - Maximum durability
* Field reversible, field sized
* Quick install brackets / Universal mounting system for aluminum, hollow metal and wood doors
* Low profile for greater clearance through door
* PUSH TO EXIT signage designates opening
* Finish: Dark Satin Bronze Anodized Aluminum
