Gai-tronics IDA1000 dc remote adapter
The Model IDA1000A adapts remote desk set or console dc control to most radio systems with features
that exploit maximum functionality.
Adjustable input and output functions such as line input, transmit output level and selectable input/output
logic control provide flexibility. Easy connections and support of multiple desk sets make this dc adapter
the ideal choice for simple or complex desk set arrangements. One dc remote adapter can interface
several dc remote desk sets to the base station, depending on system design.
Features and Benefits of the Model IDA1000A DC Remote Adapter
Multiple dc remote support System flexibility and productivity are enhanced when several desk sets are connected.
Two-channel control Model IDA1000A can be used to change channels and other
functions on certain radios.Monitor Allows user to hear co-channel activity; CTCSS/CDCSS is disabled.
Full-duplex capable When used with a 2/4-wire capable desk set, provides full-duplex
operation for use with most full-duplex and trunking radio systems.Adjustable receive input sensitivity and transmit output level
Interfaces to most radio systems and line conditions. Selectable input/output logic control
The Model IDA1000A is flexible for many radio systems. Outputs can be individually selected to go active high or to ground, depending on the radio.

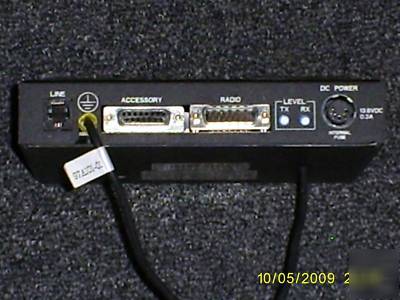

Accessory port Easily connects other devices such as a local desk set and telephone interconnect. Modular phone line connection on back
Provides easy-to-install phone line cable connection.
AC or dc capable Uses power from radio or ac source (using optional wall transformer
http:// /products/manuals/43004027a.pdf
