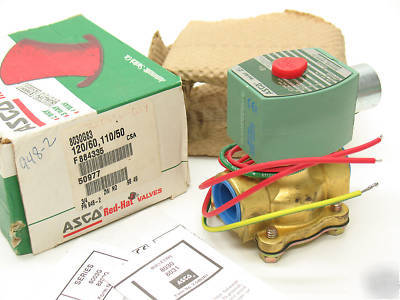

Asco 8030G83 2-way n.o. low press solenoid valve, 120V
ITEM: ASCO Model 8030G83, 2-Way Low Pressure Solenoid Valve for Air/Inert Gas/Fuel Gas/Water Service, 3/4" Female Pipe Size Connections, Brass Body, 110-120VAC @ 50-60Hz, Watertight Solenoid NEMA Types 2, 3, 3S, 4, and 4X, UL Listed, CSA Certified, CE Mark, Manufacturing Date Code: 9849 (Week 49, 1998).
Mode of Operation: 2-Way Normally Open (NO, energize to close)
Pipe Size: 3/4" NPT, 3/4" Orifice, Cv=5.5
Construction: Brass Body, Buna-N Seals
Enclosure Rating: NEMA Types 2, 3, 3S, 4, and 4X
Coil Rating: 120/60 110/50 VAC, 10.1 watts
Coil Termination: 1/2" Conduit Hub with 18" lead wires
Agency Approvals: UL Listed, CSA Certified, CE Mark
Media Temperature: 180 F maximum
CONDITION: Surplus NEW in ORIGINAL BOX, box in GOOD condition w/ slight crumpling on one end.
SOURCE: From the maintenance spare parts stock of a large pharmaceutical facility, surplus to their ongoing operations.
SOLD ELSEWHERE FOR APPROX.: $180
