New agilent E5346A/ E5351A 38 pin probe & adapter cable
This probe can be used with any Agilent logic analyzer with a 40-pin cable connector.

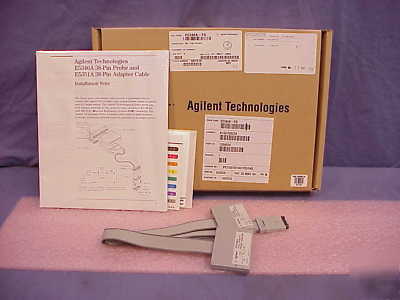

This item is BRAND NEW in factory box with Installation note.
The Agilent E5336A Mictor probe provides a convenient and reliable connection to your target through a Mictor
connector designed into your target. Route your signals of interest to the location containing the Mictor connector
and when you are ready to measure these signals simply plug-in the Mictor probe. These probes can be used with
a support shroud in environments where accidental unplugging of the probe is a concern. This probe can be used
with any Agilent logic analyzer with a 40-pin cable connector.
34 channels: 32 single-ended data, 2 single-ended clock
3.0 pF equivalent load capacitance
Equivalent to the logic analyzer data rate the probe is attached to
Measure signals with as little as 500 mV p-p signal amplitude
Provides convenient, reliable connection to target through Mictor connector
Mictor connector is easy to incorporate into your design, Agilent number 1252-7431 or AMP number 2-767004-2
Can be used with support shroud
Logic analyzers with 40-pin cable connectors Logic Analyzer Cable Connectors
Support shrouds available for board thickness to 0.12 inches
