Meister BC10L-2 metal lathe dro digital readout scales
Meister Bc10L-2 Digital Readout (DRO) with linear scales for Metal Lathe.
One (1) piece of Standard linear scales for the carriage, 20" ~ 36" travel length;
And one (1) piece of Standard linear scale for the cross slide, 4" ~ 11" travel length.
500, 600mm, 650mm to 900mm or 20" 22", 24" up to 36".
If you are not sure if this DRO package will fit your lathe,
please contact me for assistance.
* One year warranty direct for manufacturer's defect from factory.
* Display box mounting swivel arm, dust cover and power cord.
* Extruded aluminium coolant guards and end caps.

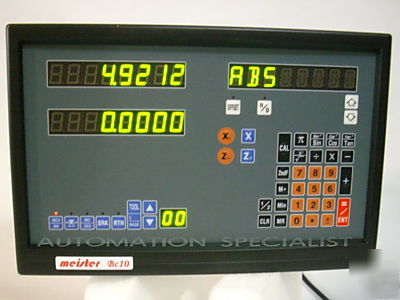

We have a new face plate for the Bc10L lathe digital readout.
Bc10L has die-cast aluminium casing.
Digital Display Specification:
* Chassis: Die-cast aluminium casing.
* Response Speed: 60m/min (198.6feet/min) .
* Resolution: 0.005mm/0.0002" ( resolution can be change to match 0.001 mm linear scales).
* Quantizing error: +/- 1 count.
* Auto-switching power supply: AC 110/230V, 50/60Hz.
* Operating temperature range: 0 ~ 40 deg C;
* Display: 8-digits green color LED display.
* Dimension: 29 x 19 x 10 cm (11 x 7.0 x 4.0 inches).
If you have a metal lathe, it is better to get a lathe DRO than a mill DRO.
Meister BC10L has Tool-offset memory and Taper Measure which are especially useful for lathe.
It also easy to set X-axis to 'Radius' or 'Diameter' just by using the key located on the fron panel.
Resolution is selectable: you can use 0.0000 5" (1 micron) or 0.000 5" (10 micron) resolution scale on the Bc10L
* "1/2" - selected axis display is divided by 2
* Absolute/Increment Co-ordinate Interchange
* Recall - recall the memorized coordinate position.
* Mechanic Zero Position Memory: re-establish workpiece zero position after power failure.
* Set X-axis to default as radius or diameter;
* R/D (Radius/Diameter) key conveniently located on front panel.
* Taper measure: measure the angle of the cone/taper.
* Linear error compensation.
* Change scale direction (+/-).
* 99 tool-offset memory (store the x1, x2 ...x99 for different cutting tools).
Bc10L DRO display Specification:
* Die-cast aluminium casing box
* Response Speed: 60m/min. (198.6feet/min)
* Resolution: 5 um/0.0002" (factory default)
* Quantizing error: +/- 1 count
* Auto-switching power source: AC 110 - 220V, 50/60 Hz,
* Temperature range: Operating 0 ~ 40 deg C,
* Display: 8-digits green color LED display
* Dimension: 11.5" x 7.5" x 4.0" (290 x 190 x 100 mm)
* Grating pitch: 0.02mm (50LP/min).
* Accuracy: 0.005 mm or 0.0002"(at 20 deg C).
* Every scale has ABS reference marks.
* Response Speed: 60m/min or 40ins/sec.
* Output Signal: TTL square wave.
* Armoured cable length, 3m. length.
This Shun Shin lathe belongs to Webb from Australia.
Thanks to John (Australia) for sending us photos of his lathe. Nice work!
The Z-axis linear scale is installed in the front as there is a taper attachment at the back of the lathe.
Photo below: Meister BC10L 3-axis Lathe digital readout has added function Z0 + Z1.
These are factory extruded aluminium coolant guard specially made for the lathe cross slide.
The back plate is first mounted on the cross slide. And the linear scale is mounted on this back plate. That make the job much easier!
Note: End caps only for MS4 and MS6 models.
* Scales are make in standard length of 100, 120, 150, 170, 200, 220, 250, 270, 300, 350, 370, 400, 420, 450, 470, 500, 520,
550, 600, 650, 700, 750, 770, 800, 850, and 900mm.
* NEW!! Factory also make Ultra MS2 model of scales for travel of 1150, 1250, 1350, 1450, 1550, 1650, 1850 mm.
* MS6 Compact slim scale can be used on cross slide if space is tight. It has a height of 29.2mm.
* MS5 Microscale would be suitable for top slide. The height is 20mm.
Feel free to check with me know if you need any assistance in this area.
It is common practise to specify linear scales by the travel or measuring length.
Do not hesitate to email to me if you have any doubts.
Meister Bc10L-2 or Bc10L-3 DRO for Lathe,
* Factory will take 2 ~ 3 days to process your order.
* Delivery time is about 9 ~ 15 days to major cities. Delivery time will varies depending on your location.
* If the parcel do not arrive by the estimated time, you can email to me and I will follow up.
* I accept return for refund or exchange.
* Please read the details in the section "Return Policy" below.
* We take great care in packing to make sure your DRO system arrive in good condition.
