Ife 8' hvy duty 3PT rear blade w/hyd 'angle' cylinder
Brand New IFE (Iowa Farm Equipment) 8' 8500 3-Point Mounted Heavy Duty Rear Blade with Hydraulic Angle Adjustment.
These IFE Blades are a Proven Line of Equipment. Expect this Blade and ALL of the Equipment we sell to be Top Quality Equipment that will Serve you Well for a Lifetime and Provide a Great Resale Value Too!!!
* Severe Duty 4" X 4" X 3/8" Main Tube for 3-Point Structure with Clevis Type Connections.
* You Won't Find Another Comparable Rear Blade with a 3-Pt Structure Anywhere Near as Rugged as this One!
* This Blade Has Hydraulic Adjustment for the Angle Position Only!
* Of course, Cylinder & Hose is included.

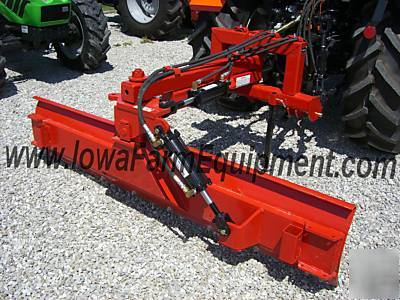

* Photo Shows Two Cylinders (for Angle & Tilt), But This Listing Includes Only The Angle Cylinder!
* Blade includes a Wratchet for Tilt Adjustment & Pin Jack for Offset Position.
* Having a Wratchet for Tilt Adjustment Provides almost Infinite Position Settings!
* Parking Stand is also Included.
* Blade is 8' Wide, Moldboard is 5/16" Thick & 18" Tall.
* Blade is Suitable for Category 1 & 2, 3-Point Hitches.
* Suitable for 2WD Tractors to 85HP & 70 HP for 4WD Tractors.
* Reversible, Heat Treated Cutting Edge is 1/2" x 6"
* Angle Adjusts up to 36 Left or Right.
* Tilt Adjusts 24 Up & 28 Down.
* Offset Adjusts to 28-3/4" Left or Right.
* Blade Weighs 825lb's w/o Cylinders, Hoses or Wratchet.
Plus we are very glad to say, This Blade is MADE IN THE USA!!!
