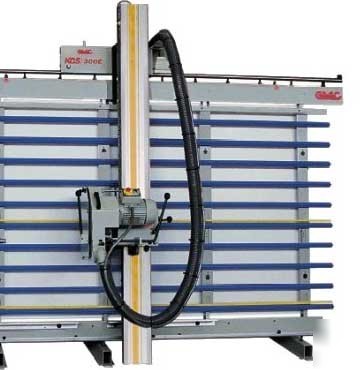

Gmc KGS300E wallsaw - vertical panel saw
A Strong and stable machine with a monobloc frame that allows you to cut boards up to 3200x1900mm in a minimum space. Upper fence made of ground hardened and tempered steel always ensuring accurate square edging processing. The sawing unit is covered with soundproof material that reduces noise and vibrations to a minimum. The powerful 4hp motor allows you to cut upto 50mm depth. The repeater device allows uniform strips to be cut quickly and simply.
Average equivalent continuous acoustic radiation pressure 72.0 dBA (no load); 78 dBA (working); mt. 2 intermediate turnover support; 2 stops for vertical cuts.Lower aluminium support; Moving frame; TCT sawblade; 2 Intermediate retractable stops; 2 Adjustable stops for vertical cuts; 1 Repeater device for horizontal cuts; 4 Mechanical stops for horizontal cuts; 2 Slides with scales for vertical cuts; 2 Metric scales for horizontal cuts; CE regulations
Max height of vertical grooving 1600mm
Depth of cut 50mmHose dia. 70mm
Motor power 4hpBlade size 250 x d20 x 2@8mm x 60 ctr p/holes
DimensionsLength of saw 4300mm
