> Anritsu MW9076 sm fiber otdr MU250000A4 MW9076B1 40DB
Anritsu MW9076 sm fiber otdr MU250000A4 MW9076B1 40DB
* Anritsu MU25000A4 Display Unit
* Travel/Transit Hard Carrying Case

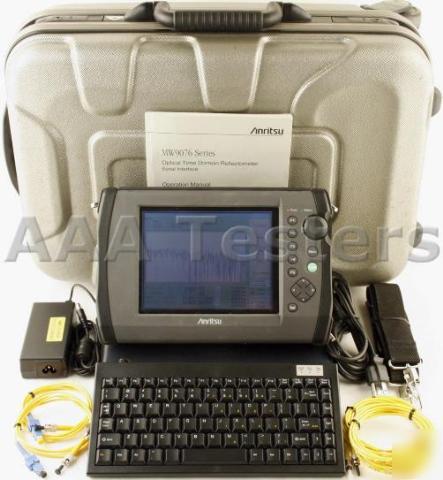

Anritsu MU250000A4 MainFrame With MW0976B1 SingleMode 1310nm/1550nm Module With VFL
Includes Travel/Transit Hard Carrying Case & Complete Accessories!
The new MW9076 mini-OTDR series can perform a measurement three to five times faster than the well received, conventional MW9070B. Three and four-wavelength OTDRs are included among the new product lineup. The four-wavelength OTDR can measure the chromatic dispersion characteristics from one end of an optical fiber. Two types of color displays with high resolution (5cm) and many sampling points (50000 points) are available for indoor and outdoor use. The MW9076 series shows superior basic performance that enables a wide dynamic range and a short dead zone. It supports the construction and maintenance of the optical fiber cables. Moreover, using this OTDR, it is possible not only to quickly charge a lithium-ion battery but also to indicate the remaining battery charge.
* 40.5/38.5 dB high dynamic range
* Simple measurement of chromatic dispersion from one end of an optical fiber
* Measurement in 10 s (Full-Auto mode), 0.15 s real-time sweep
* 5 cm high resolution, 50,000 sampling points
* 8.4 inch TFT-LCD color display
Dead zone (Fresnel, back-scattered)
High power optical power meter
General purpose OTDR for mid-distance SM optical fiber installation and maintenance. Offering superior cost performance.
