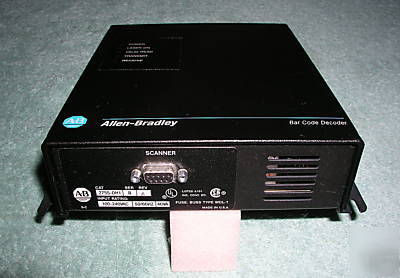

Allen-bradley 2755-DH1 bar code workstation decoder

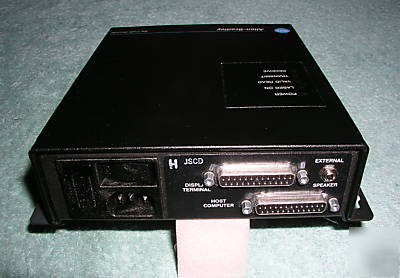

The decoder s Host Computer port is used by the: decoder to send decoded bar code data to the host for processing, host computer to display the configuration screen, host computer to send messages to Display Terminal, host computer to download commands (escape sequences) to the decoder
A Display Terminal port is also supplied to: view decoded information, view the decoder s configuration, enter supplemental information, enter bar code data to the host in case a symbol cannot be read by your system
The features of the decoder are as follows:
* Integral power supply used to power the decoder and scanning device. It accepts input voltages from 100 to 240 Volts AC
* Auto discrimination of the following symbologies: Code 39, Interleaved 2 of 5, UPC and UPC with supplemental digits, EAN and EAN with supplemental digits, Codabar, Code 128, Code 11
* Programmable by bar code symbols or escape sequences
* Nonvolatile memory (EEPROM) used for storing configuration parameters
* Full duplex RS-232-C or RS-422 port for communication with a host computer
* Separate RS-232-C port for communication to a display terminal
* LED indicators to monitor system status and assist in programming
* Built-in speaker with variable volume
* Automatic laser scan shutoff
* Detachable IEC 320 power cable
* Compatibility with a variety of scanning devices including hand-held laser scanners, wands and unattended scanners
* Designed to meet UL and CSA standards
* Label on bottom provides a quick reference guide to connector pinouts
This came in a lot of spare parts so it has a few tiny light cosmetic paint scratches, but all of the controls/connections are unharmed and it is clean. I also powered it up to verify it is NOT DOA.
