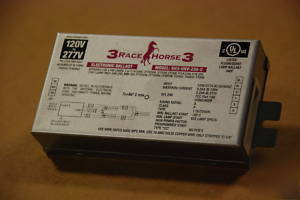

5 fulham RH3-unv-226-c compact fluorescent ballasts
* Programmable Start for Extended Lamp Life in Frequent Switching Applications
* End-of-Lamp Life Protection to Safely Remove Power From the Lamp as it Nears End-of-Life
* Auto-Restart eliminates the need to reset the power mains after lamp replacement
* Powers: 1 or 2 x Quad Tube 26w, 1 or 2 X Triple Tube 26w, Triple Tube 32/42w, T5CR22/40w, 1 or 2 x Twin Tube 13w, 2 x Twin Tube 24/27w, 2 x 2D21w, 2D28w, 2D38w
* Protection/Input: ANSI C82.11-1993
* Min. Operating Temp.: -20°F(-30°C)
* Max. Operating Temp.: 158°F(80°C)
* EMI/RFI: Complies with FCC 18-B
* Protection/Output: Open Lamp, Shorted Lamp, End-of-Life
* Voltage Transients: MOV (PER ANSI C82.11-1993)
