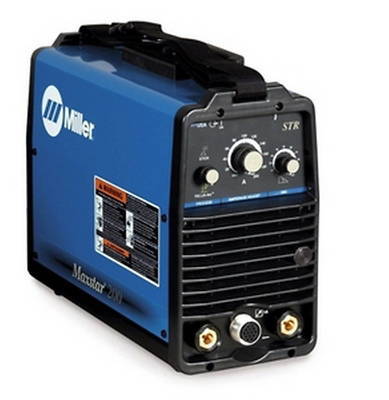

Miller maxstar 200 str dc tig / stick 907036
The Maxstar family expands its product offering with this Stick and Lift-Arc inverter TIG machine. Weighing only 32 pounds, the Maxstar 200 STR provides 5-200 amps of code-quality DC output, delivering enough power to weld 1/8 and 5/32 inch E6010 and E7018 electrodes.
With the Auto-Line feature, operators can plug into any outlet ranging from 115 to 460 volts, single or three-phase, and 50 or 60 hertz, without manual relinking. A new feature, Low OCV in the Stick mode, reduces open circuit voltage to 13 volts when not in use. Other features include Adaptive Hot Start and Adjustable Dig for Stick,Lift Arc for TIG, and remote facilities for easy remote hook up.
* Standard machine comes with 6-pin receptacle to run remote control which provides more precise arc starts and current control while welding.
* Low OCV Stick is a simple design that reduces the open-circuit voltage (OCV) to 13 volts when the welding power source is not in use. This circuit design is now built in to the Maxstar 200 STR eliminating the need for add-on voltage reducers.
* Superior Stick arc performance on all input voltages. Even on the difficult to run electrodes like E6010.
* DIG control allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like 7018 and increase the TIG setting for stiffer, more penetrating electrodes like 6010.
* Inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine.
* Portable in the shop or at the job site, the 32 lb the Maxstar 200 STR is easily moved from location to location.
Unit weighs 32 lbs ( 14.5 kgs )
