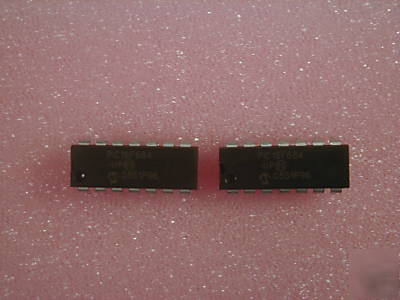

Microchip pic 16F684 flash-based 8-bit cmos 14 dil
Only 35 instructions to learn:
- All single-cycle instructions except branches
- DC 20 MHz oscillator/clock input
- DC 200 ns instruction cycle
- Software selectable frequency range of 8 MHz to 31 kHz
- Crystal fail detect for critical applications
- Clock mode switching during operation for power savings
Wide operating voltage range (2.0V-5.5V)
Brown-out Detect (BOD) with software control option
Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable
12 I/O pins with individual direction control:
- High current source/sink for direct LED drive
- Ultra Low-power Wake-up (ULPWU)
- Programmable on-chip voltage reference (CVREF) module (% of VDD)
- Comparator inputs and outputs externally accessible
- 10-bit resolution and 8 channels
- Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected
Enhanced Capture, Compare, PWM module:
- 16-bit Capture, max resolution 12.5 ns
- Compare, max resolution 200 ns
- 10-bit PWM with 1, 2 or 4 output channels, programmable dead time , max frequency 20 kHz
The device is a 14-pin Dual-In-Line package.
