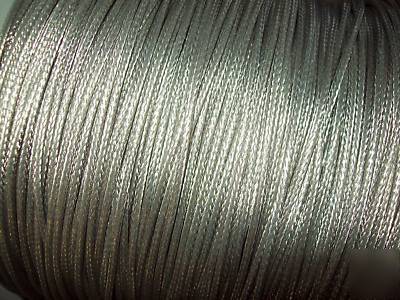

Electrical wire 20 awg 1000V cable mil-w-16878/2 700 ft
Manufacturer: Various (DULON INC., SURPRENANT INC., etc.)
Quantity: We have several spools most are 1000 but some are slightly less so to be safe we are advertising this as 900 of cable
ZZZT NONDEFINITIVE SPEC/STD DATA: C TYPE
SR-1 MANUFACTURERS CODE: 81349
MATT MATERIAL: COPPER CORE CONDUCTOR SINGLE CONDUCTOR
HUES COLOR: BLUE 1ST POSITION COVER SINGLE CONDUCTOR
CXCW CONDUCTOR FORM: STRANDED SINGLE CONDUCTOR
BLNZ STRAND QUANTITY PER CONDUCTOR: 7 SINGLE CONDUCTOR
SR-1 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE: MIL-W-16878/2
SFTT SURFACE TREATMENT: TIN CORE CONDUCTOR SINGLE CONDUCTOR
MDCL MATERIAL DOCUMENT AND CLASSIFICATION: QQ-W-343, SOFT FED SPEC SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
CXFK VOLTAGE RATING: 1000.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR
CXDQ CONDUCTOR ARRANGEMENT AND QUANTITY: 1 SINGLES
CXDG STRAND AWG SIZE PER CONDUCTOR: 28 SINGLE CONDUCTOR
CXDC ROUND CONDUCTOR SIZE: 20 AWG SINGLE CONDUCTOR
AMQN CONDUCTOR QUANTITY: 1 ADVL CROSS SECTION OUTSIDE DIAMETER 0.148 INCHES NOMINAL
ABJH TEMP RATING: 115.0 DEG CELSIUS
AAGR CROSS-SECTIONAL SHAPE STYLE: 6 ROUND
