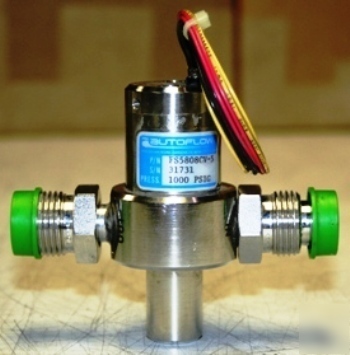

Autoflow FS5808CV-5 high-flow flow switch
Autoflow FS5808CV-5 High-Flow Flow Switch
$520.00 each (4 week lead time) (OEM 04/08/09 MQF)
* Operates in any orientation
* Operating Temperature -40 F to +220 F (-40 C to +105 C)
* Operating Pressure 1000psig (68bar)
* 316 stainless steel construction
* Shock and vibration resistant
* Flammable or pyrophoric gases
The FS5800 Series Flow Switch High Flow is designed to precisely detect increasing or decreasing flow rate of gases in critical semiconductor and specialty gas processes. Typical applications include low fault monitor for vacuum pump purging systems, as well as oxygen, hydrogen and nitrogen systems and excess flow safety. The linear, high resolution adjustment allows for precise settings. The compact construction is ideal for high density system packaging.
* Switch assembly: SPDT UL 61760
* 3 Watts resistive max continuous
* 0.20 Ohm max contact resistance
* Adjustable flow rate setpoint: 1slpm 65slpm
* Fluid media: Gases including corrosives
* Pressure: 1000 psig max (207 bar)
* Differential Pressure @ Setpoint: 5.0 psi max
* Operating temperature: -40 F to +220 F (-40 C to +105 C)
* Leakage: 1x10-7cc/sec He max
* Response time: 10 milliseconds max
* Deactuation (reset): less than 12% of actuation set point
* Internal filter: 40 micron
* Materials: Body and wetted parts: 316ss; Spring: Inconel X; Seals: as specified
