#VF3 haas 4-axis cnc vertical machining center #25224

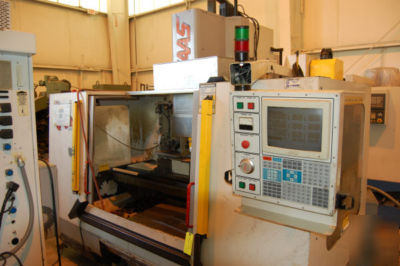

#VF3 HAAS 4-AXIS CNC VERTICAL MACHINING CENTER
New 1997, Serial No 12890, Model VF3
Haas 32-Bit 4th Axis CNC Control (Fanuc Compatible)
8" Diameter Haas 4th Axis Rotary Table
Rigid Tapping - Brushless Servos
Table Dimensions (Overall), W x L........ 18" x 48"
Table Load Capacity...................... 1500 LBS
Table Longitudinal Travel (X-Axis)....... 40"
Saddle Cross Travel (Y-Axis)............. 20"
Quill Vertical Travel (Z-Axis)........... 25"
Spindle Nose to Table, Maximum........... 29"
Spindle Nose to Table, Minimum........... 4"
Spindle Taper............................ #40
Spindle Speeds, Range.................... 0 to 7500 RPM
Cutting Feedrate, Maximum................ 300 IPM
Rapid Traverse Rates, X, Y, & Z-Axis'.... 710 IPM
Spindle Motor, Horsepower Rating......... 15/20 HP
Overall Dimenstion, W x D................ 9'10" x 9'2"
Overall Height........................... 10'
Weight, Approximately.................... 12500 LBS
NOTE: THIS MACHINE DOES NOT HAVE A TOOL CHANGER. MANUALS AVAILABLE UPON REQUEST.
