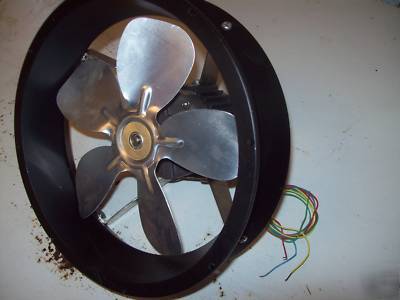

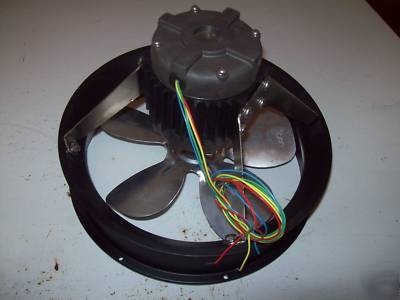

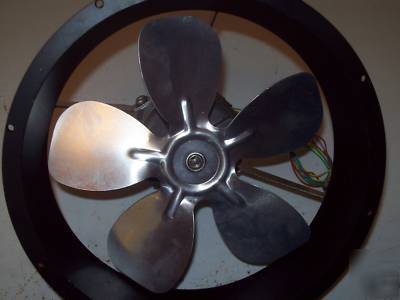

One single speed three phase ventilating fan

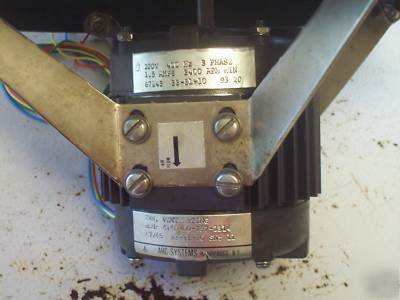

One ventilating fan NSN 4140-00-757-2314 new/unused. Item comes in factory box and the product shows minor scuffs and discoloration from storage. Unable to test and is assumed to be in excellent working condition. Plate on fan with information is dinged and numbers are faded and discolored. This item retails for a little over $1,400.00 very nice condition/nice product. Date on box 10/94.
SPEED ADJUSTMENTS SINGLE SPEED
ENVIRONMENTAL PROTECTION FUNGUS PROOF AND HUMIDITY PROOF AND MOISTURE RESISTANT AND SALT SPRAY RESISTANT AND SHOCK PROOF AND VIBRATION PROOF
AMBIENT TEMP AT FULL RATED POWER NOT RATED
OPERATING SPEED AT RATED CAPACITY IN RPM 3400.0
ELECTRICAL CONNECTION TYPE WIRE LEAD
STATIC PRESSURE AT SPECIFIED AIR FLOW RATE 0.0 INCHES OF WATER
PRIME MOVER TYPE ELECTRIC MOTOR
MOUNTING FACILITY TYPE AND QUANTITY 1 FLANGE AND 8 UNTHREADED HOLE
ROTATION DIRECTION FOR WHICH DESIGNED CLOCKWISE
AIR FLOW RATE 740.0 CUBIC FEET PER MINUTE MAXIMUM
VOLTAGE IN VOLTS AND CURRENT TYPE 200.0 AC
PRIME MOVER POWER RATING 0.240 HORSEPOWER
PHASE THREE FREQ FREQUENCY IN HERTZ 400.0 SR-5 MANUFACTURERS CODE 82877 SR-5 DESIGN CONTROL REFERENCE 020687
LENGTH 6.562 INCHES MINIMUM AND 6.688 INCHES MAXIMUM
DRIVE TYPE DIRECT MATT MATERIAL ALUMINUM OVERALL
SURFACE TREATMENT ANODIZE BLADE STYL STYLE DESIGNATOR 34 FIXED
