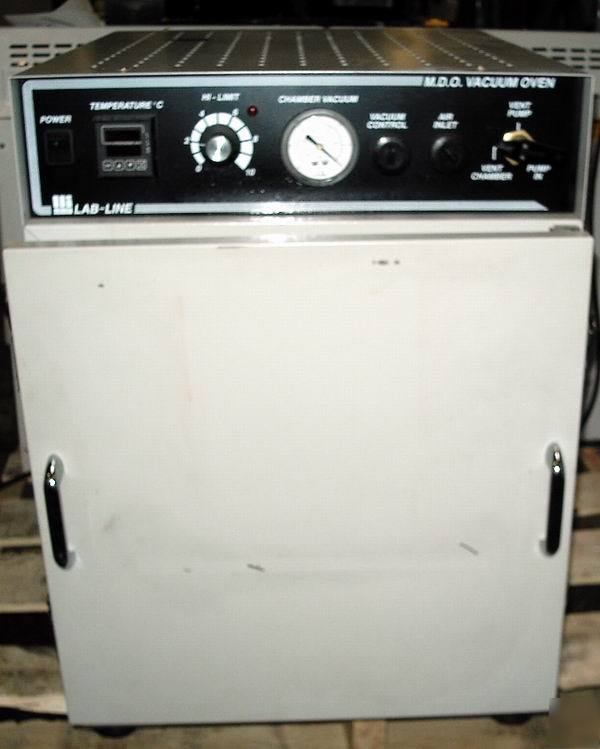

Lab-line instruments 3624 vacuum oven
LAB-LINE INSTRUMENTS 3624 OVEN. USED IN GOOD COSMETIC CONDITION. CAME OUT OF WORKING LAB.
P.I.D. microprocessor temperature controller, radiant warm wall
heating design, and manifold airflow system provides controlled
conditions for optimal consistency and reproducibility in moisture
Solid, insulated door with silicone chamber gasket minimizes heat
Front-mounted three-way flow pump control valve, vacuum control
valve, and air inlet valve for easy operation.
Three removable perforated aluminum shelves included.
Corrosion-resistant stainless steel chamber construction.
Vacuum and air lines constructed with corrosion-resistant stainless
steel tubing for optimum chamber cleanliness and long term
Durable heavy gauge steel cabinet with powder coated finish.
P.I.D. microprocessor temperature controller regulates temperature
from ambient +5 C to 150 C (302 F) with 1.0 C control or better
Standard Type-K sheathed thermocouple under center chamber shelf
monitors actual chamber temperature.
Convenient LED temperature display shows set point and actual
Vacuum gauge displays regulated chamber vacuum levels between 0
Optional rigid and/or flexible Type-K thermocouple probes can be
used to sense internal temperature on the upper and lower shelves.
Nitrogen, CO2, desiccated air and other inert, non-flammable gases
can be used in the oven to achieve a controlled atmosphere.
