Knudson framemaker KS2468 structural stud&track machine

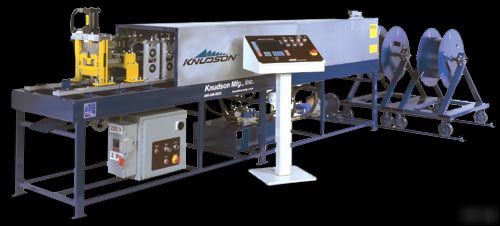

KNUDSON FRAMEMAKER KS2468 Structural Stud&Track Machine
Machine was purchased new but never used.
The KS-2468 is a strong machine, especially if you re just starting out. It creates a 3 5/8 stud profile, a popular commercial wall width. With the KS-2468, you can even produce overtrack or slip track for each of the Web sizes.
Web 3.50 , 3.63 , 4.00 , 5.50 , 6.00 , and 8.00
Refer to Knudson Engineering Data or Knudson Profile Drawing for Specifications
Steel Galvanized, Painted, Pre-Finished, Bare
Steel Max Tensile Strength = 52-ksi
Ten (10) Powered Roll-Forming Stations
60 /min Nominal Throughput (+/- 2 /min)
Power Source: Electric Motor/Hydraulic Pump
Power Take-Off: Hydraulic Actuators: Hydraulic Motor, Hydraulic Cylinder(s)
Drive/Forming Rollers: Gear/Sprocket/Roller Chain Drive
Main Drive Speed: 61 rpm @ 3.75 Drive Diameter
Spool: 13.25 Wide/20 ID - 5,000-lbs max (optional)
Spool Stand: Traveling - 5,000 lb max (optional)
Un-Coiler Eye-Up Decoiler - 10,000-lbs capacity (optional)
Equivalent continuous A-weighted sound pressure level = less than 70 dB (A)
Machine Specifications - Mechanical Systems
Line Voltage = 230 VAC (+/- 10%)
Line Current = 40 Amps recommended
Line Frequency = 60 Hz (+/- 1%)
Line Phase = three phase (3 Ph)
Full Load Current = 20.8 Amps (230 VAC)
Electrical Drawing = See Drawing Provided by AMS
Digital Batch Controller/Operator Interface
Machine Specifications - Electrical Systems
+41 to +131 Fahrenheit (+5 to +55 Celsius)
Up to 24 hours at 122 Fahrenheit (50 Celsius)
Minimal vehicular transport on maintained roads
Off-road transportation not recommended
-13 to +131 Fahrenheit (-25 to +55 Celsius)
Up to 24 hours at +158 Fahrenheit (+70 Celsius)
Should not be operated in any kind of explosive atmosphere
