Hp/agilent 87301D directional coupler 1-40GHZ, 2.4MM

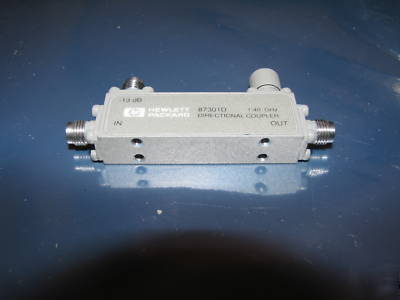

This item is a HP/Agilent Coaxial Directional Coupler 1-40GHz . Model # 87301D
The Agilent 87301D is a compact, broadband directional sampling coupler designed for signal monitoring or, when combined with a coaxial detector, signal leveling. 2.4mm (female) connectors.
* Frequency range: 1 to 40 GHz
* Nominal coupling & variation: 13 1 dB
* Directivity: 14 dB to 20 GHz, 10 to 40 GHz
* Maximum SWR: 1.5 to 20 GHz, 1.7 to 40 GHz
* Insertion loss: < 1.2 dB to 20 GHz, < 1.9 to 40 GHz
