Tektronix 1780R video measurements set

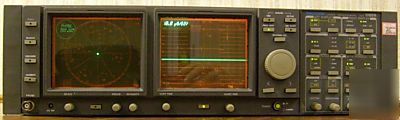

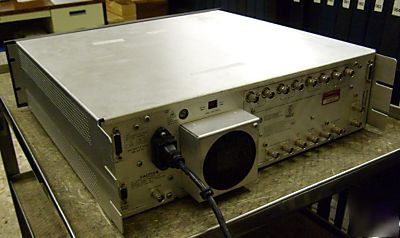

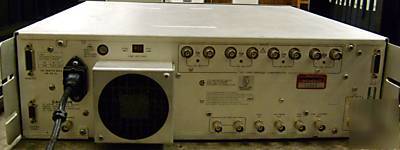

Tektronix 1780R Video Measurements Set
This is a used Tektronix 1780R Video Test Set, it is in full working condition and has a 30 warranty and 7-day right of refusal. Unit comes with a 1-year NIST traceable calibration.
* Full Bandwidth Analog Video Processing
* Precision Waveform and Vector Measurements
* Polar SCH Presentation with Calibration
* Four Loop-through Video Input Channels
* Component or Composite Waveform Evaluation
* Measurement-grade Time and Voltage Cursors
* Electronic K-Factor and ICPM Graticules
* Precision Differential Phase/Differential Gain Measurements Even with Noisy Signals
* Stereo Audio Phase and Amplitude Display
* Digital Control of All Functions
* Touch Screen User Interface
* Available for Either NTSC or PAL Standards
* UL, CSA, FM, ANSI, IEC and FCC Approved. Meets EMC Directive 89/336/EEC
The 1780R Series Video Measurement Set offers features for precise evaluation of studio and transmission performance. This multi-function instrument is a wide bandwidth, multi-input, waveform/vector/SCH measurement package. The advantages of separate waveform and vector instruments are provided in a single rack width, 5.25 in. or 133.4 mm high package. In addition, specific measurements take advantage of the 1780R Series' shared waveform monitor and vectorscope internal processing. Separate, optimized waveform and vector display CRTs allow simultaneous monitoring of several video parameters.
The 1780R Series provides a full menu of waveform/vector/SCH monitoring capabilities.
