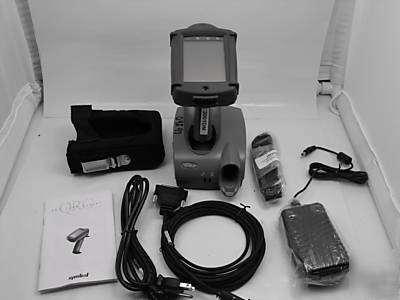

Sybol pdt 7200 portable data terminal (used)
PDT 7200 Portable Data Terminal Specification Highlights
Dimensions: 3.7 in. H x 5.9 in. W x 7.8 in. L/9.4 cm H x 15.0 cm W x 19.8 cm L
Weight: Batch: 21 oz./595 gm with battery; wireless: 23 oz./652 gm with battery and PCMCIA LAN card
Operating Temperature: -4 to 122 F/-20 to 50 C
Storage Temperature: -20 to 140 F/-30 to 60 C
Humidity: 95% relative humidity (noncondensing)
Drop: Multiple 4 ft./1.2 m drops to concrete
Environmental Sealing: IP64 (industry standard for dust and water sealing)
ESD: 15kv electrostatic discharge to all surfaces without loss of data
Laser Source: Visible Laser Diode at 650-680 nm
Scan Engines: SE 1200 High Performance, SE 2200 (1-D and 2-D); SE 1200 ALR (Advanced Long Range)
Display: 1/4 VGA-size transflective LCD, 240 x 320 pixel resolution, controllable backlight
Touch Screen: Resistive touch panel, scratch-resistant Mylar overlay
Power: Quick change, rechargeable 7.2V, 1600 mAH smart battery
Control Switches: Power ON/OFF, contrast, backlight, alphanumeric toggle
Status Indicator Lights: Wireless operation, scanning, good decode, battery level
Microprocessor: AMD Elan SC400, 32-bit Am486 CPU, 33/66 MHz
Operating System: Microsoft MS-DOS Version 6.22, Microsoft Windows CE Version 2.11
RAM Memory: 8 MB Standard for MS-DOS, 16 MB standard for Windows CE
Flash: 8 MB nominal internal flash memory module to 16 MB for Windows CE (factory-installed)
Additional Storage: Industry standard flash modules available upon request
Real-Time Clock: Time and date stamping under software control; year 2000 compliant
Interfaces: Infrared port, IrDA V1.0 standard compatible @ 115.2 Kbps for batch communications
Output Power: 500 mW U.S.; 100 mW international
Data Rate: 1 Mbps, 2 Mbps and 11 Mbps
Spreading Technique: Frequency Hopping/Direct Sequence (11 Mbps)
Range: Open space: up to 1,000 ft./303 m; Typical: 180 ft. to 250 ft./54.5 to 76 m
Frequency Range: Country dependent, typically 2.4 to 2.5 GHz
Voice Paging: Send messages and pages via Spectrum24 network
Cradles: Single slot and four-slot cradles available
Printers: Supports extensive line of Symbol-approved printers, cables and accessories
4-Slot Universal Battery Charger: Recharges multiple batteries; battery adapter: used with Universal Battery Charger
EMI/RFI: FCC Part 15 Class A, European Union EMC Directive, Australian SMA
Electrical Safety: Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
Laser Class: CDRH Class II, IEC825-1/EN60825-1 Class II
