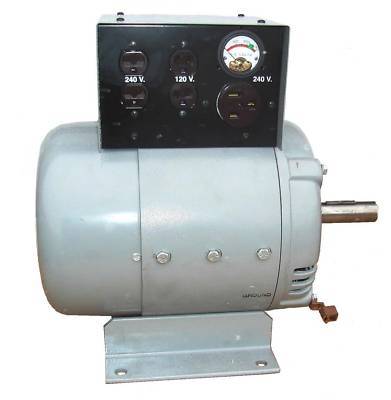

Generator - belt drive driven - 8,000 watts - 120/240V
8,000 Watts (8 kW) - 120/240V - Heavy Duty Industrial Designed - Two Bearings - Bi-Directional (Generates in Clockwise or Counter-clockwise)
SEE OUR FULL LINE OF BELT DRIVEN GENERATORS BY FOLLOWING THIS LINK: BELT DRIVEN GENERATOR LINE
* Heavy Duty Industrial Designed Winco 8,000 Watt - 120/240V - Belt Driven Generator
* This belt driven generator is perfect for use on OEM equipment such as scissor lifts, pressure washers, welders, marine applications and more
* Winco's heavy duty industrial designed, rugged, two bearing generator come with double baked armatures, epoxy baked rotors, oversized diodes, cast iron drive-side end bracket and double sealed permanent bearings
* Double sealed permanent bearings to insure maximum performance and life
* Bi-Directional: rotates either direction (clockwise or counter-clockwise) without changing the wiring
* Minimum Hp Required for Operation: 16 Hp
* This unit is capable of starting a 3 Hp motor
* RPM (Operatoring Speed): 3,600
* Motor Starting Capability: 3 Hp
* Receptacles - 120V: 2 Each - 15 Amp (NEMA 5-15)
* Receptacles - 240V: 2 Each - 15 Amp (NEMA 6-15R)
* Receptacles - 230V: 1 Each - 50 Amp (NEMA 6-50R)
* Rated A/C Amps: 66.6 / 33.3
* Overall Dimensions: 19" L x 12" W x 17.75" H
