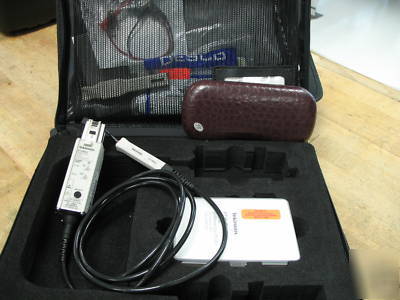

Tektronix P7360A 6GHZ tekconnect differential probe
Condition: Used from our rental pool ~ Fully functional
Tektronix P7360A 6GHz TekConnect Differential Probe
Signal Fidelity >6.0 GHz Bandwidth.
Extended Linear Dynamic Range 2Vp-p @ 5X attenuation.
Interchangeable Tip-Clip assemblies.
Replaces the P7360. The key difference being:
Extended Dynamic Range, 1.25Vp-p to 2Vp-p, Added adapters: handheld;
square pin; and variable standard adapters.
* Make Differential or Single-ended (Ground-referenced) Measurements*1
* Handheld Probing with Variable Spacing and Compliance
* Interchangeable Tip-Clip Assemblies
* Connect to a Variety of Devices
Z-Active Probing Architecture Leads the Way for High-speed Probing Applications
Tektronix has created a revolutionary Z-Active probe architecture that sets the industry benchmark for signal fidelity. Tektronix active probe architecture preserves high bandwidth while providing improved connectivity with low loading. The Z-Active architecture is a hybrid approach composed of a distributed attenuator topology feeding an active probe amplifier.
The Z-Active probes use a tiny passive probe tip element that is separate from the amplifier, extending the usable reach of the probe. In traditional active probes, adding this much length can introduce signal fidelity problems. However this architecture maintains high DC input resistance and presents a higher AC impedance than previous probe architectures. It accomplishes this while providing significant length between the probe body and the probe attachment point to the DUT. This architecture provides the best of both worlds: high DC impedance like existing active probes and the stable high-frequency loading of Z0 probes.
Medium Small Dia. Flex Tip Assy's.- BLUE
Small Small Dia. Flex Tip Assy's.- BLUE
Medium Large Dia. Flex Tip Assy's.- RED
Long Small Dia. Flex Tip Assy's. BLUE
