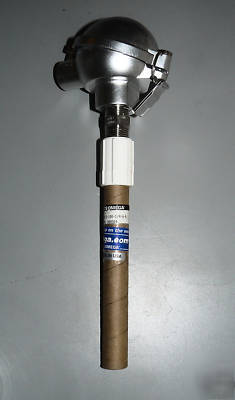

New omega pr-18-2-100-1/4-6-e rtd probe aluminum head
This rugged design offers a variety of protection heads with 1/2" NPT mounting threads and 304 SS sheath. The length dimension includes a 1/2" thread allowance for use with thermowells or for direct immersion into the process. The standard probe uses a Style 2 (3-wire) lead configuration, but other configurations are available. All probes include a screw terminal block for easy connection of copper extension wire. Standard probe diameters are 1/8, 3/16, and 1/4". Standard probe lengths are 6, 9, 12, 18, and 24". Intermediate probe lengths are available at the next longer standard probe s price. Lengths over 24" are also provided; contact Sales Department for availability and pricing.
Industrial RTD probe with aluminum head, 3-wire configuration, 100 ohm, 1/4" diameter, 6" length, european curve (a = 0.00385)
