Miller 951074 dynasty 350 complete package tig welder

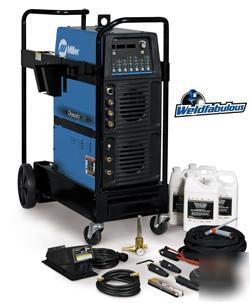

Miller 951074 Dynasty 350 Complete Package Tig Welder
Miller Electric # 951074 Dynasty 350 Complete
Latest technology - this powerful, compact AC/DC inverter delivers superior arc performance with total AC arc shaping capabilities. Auto-Line technology allows connection to any voltage or frequency in the world while using half the power of a conventional welding machine.
* Independent Amplitude/Amperage Control
* AC Waveforms Control: Advance Squarewave, Soft Squarewave, Sine Wave, and Triangular Wave
* Exceptionally smooth and precise arc
* High-Speed DC TIG Pulse Controls
* Tailored arc control (DIG)
Auto-Line - Allows for any input voltage hook-up (208-575 V) with no manual linking, providing convenience in any job setting.
HF arc starting provides non-contact arc starting that eliminates tungsten or material contamination.
Superior Arc Performance- Smooth running 7018 or stiffer, more penetrating 6010.
Fan-On-Demand cooling system only operates when needed.
120 V auxiliary power receptacle for cooling system or small tools.
Programmable start parameters allow independent starting conditions based on process and memory selections (amperage, time, and polarity.
Extended Balance Control range (30-90% EN) allows precise cleaning control and prolonged tungsten life.
Lift-Arc start provides TIG arc starting without the use of high frequency.
Wind Tunnel Technology is an Internal air flow that protects electrical components and PC boards from dirt, dust, and debris, greatly improving reliability.
Program memory features 9 independent program memories that maintain/save your parameters.
Auto-Postflow calculates the length of postflow time based on the amperage setting. This eliminates the need to independently set the postflow time for different amperages. This feature preserves your tungsten and prevents porisity.
TIGRunner packages feature a 3.5 gallon cooling system. The cart is equipped with cylinder-carrying capabilities, filler rod holder, foot pedal holder, torch, and cable holders. A pullout drawer provides additional storage for torch consumables and tools.
* 208-575 V, 3- or 1-Phase Power
* 3-Phase: 300 A at 32 V, 60% Duty Cycle
Single-Phase: 225 A at 29 V, 60% Duty Cycle
* 268.5 lb (122 kg), with TIGRunner
* Precision Metal Fabrication
* Anodized Aluminum Fabrication
* (2) Dinse 50 mm connectors
* 25 ft (7.6 m) Weldcraft CS310
* Torch accesory kit with tungsten
* Collets-1/16, 3/32, 1/8
* Collet Bodies-1/16, 3/32, 1/8
* 2% Cerium Tungsten-1/16, 3/32, 1/8
* 15 ft (4.6 m) work lead w/clamp
