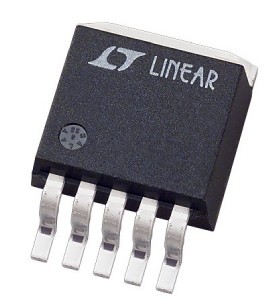

Linear LM1764EQ-3.3 3.3V 3.0A to-263 regulator qty 50
LINEAR LM1764EQ-3.3 3.3V 3.0A TO-263 Regulator QTY 50
The LM1764 is a low dropout regulator optimized for fast
transient response. The device is capable of supplying 3A
of output current with a dropout voltage of 340mV. Operating
quiescent current is 1mA, dropping to <1 A in
shutdown. Quiescent current is well controlled; it does not
rise in dropout as it does with many other regulators. In
addition to fast transient response, the LM1764 has very
low output voltage noise which makes the device ideal for
sensitive RF supply applications.
Optimized for Fast Transient Response
Dropout Voltage: 340mV at 3A
Low Noise: 40 VRMS (10Hz to 100kHz)
Wide Input Voltage Range: 2.7V to 20V
Controlled Quiescent Current in Dropout
Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V
Adjustable Output from 1.21V to 20V
<1 A Quiescent Current in Shutdown
Stable with 10 F Output Capacitor
Available in 5-Lead TO-220, DD and 16-Lead
