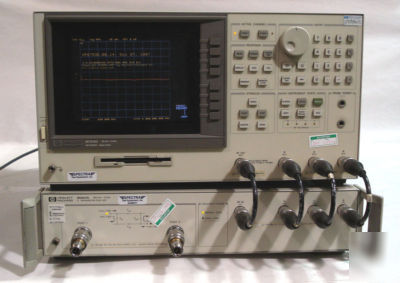

Hp 8753D rf network analyzer & hp 85047A s-parameter
Agilent / HP 8753D RF Network Analyzer
Agilent / HP 85047A S-Parameter Test Set
002: HARMONIC MEASUREMENT CAPABILITY
006: 6 GHz Frequency Extension
011: DELETE BUILT-IN TEST SET, change band width to 300Khz-3Ghz
30kHz to 3GHz frequency range, -85dBm to +10dBm power range, 110dB dynamic range, Integrated 1Hz resolution synthesized source, Group delay and deviation from linear phase, Save / recall to built-in disk drive, Built-in accuracy enhancement, Color CRT, RS-232 interface.
50ohm IMPEDANCE, 300kHz TO 6GHz FREQUENCY RANGE, DIRECTIVITY: 300kHz TO 1.3GHz 35dB, 1.3GHz TO 3GHz 30dB, 3GHz TO 6GHz 25dB; 7mm PRECISION PORT 1 & 2, TYPE-N (FEMALE) ALL OTHER CONNECTORS, INCLUDES A FREQUENCY DOUBLER THAT CAN BE SWITCHED IN TO MEASURE 3 MHZ TO 6 GHZ IN A SINGLE SWEEP OR SWITCHED OUT TO MEASURE 300 KHZ TO 3 GHZ IN A SINGLE SWEEP.
Power cable, manuals on CD, cables seen in photographs.
Working, verified by lab good condition.
* Unit comes with 5 day Right of Refusal and 30 day warranty.
* Bank Transfer is required for all international orders (carries a $25.00 fee).
* Certified Check, Personal Check (allow 10 days after receipt for personal checks to clear).
