Conrac / phi 1 1/2" tube bender

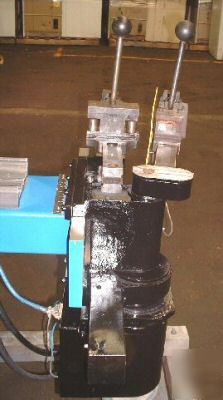

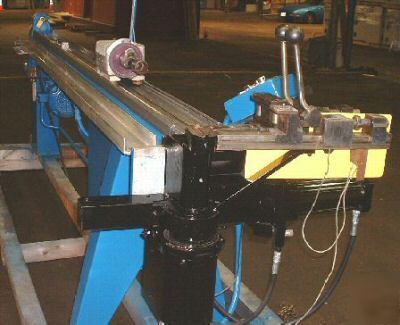

Conrac/ PHI 1 1/2" Tube Bender

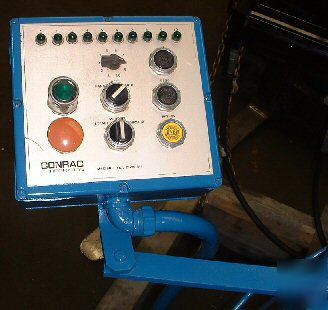

Hydraulic powered, with preset dial a bend control, Loaded with Tooling, Model 210 R.H., S# 84693-185, Type Sychrobender, 3HP 230/460 3ph, 11' mandrel bed length,

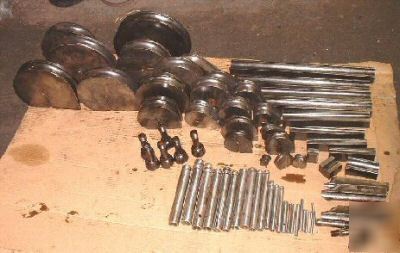

List of Tooling that comes with machine
1 1/4" x 5" R, 1 3/8" x 5 1/2" R, 1 1/2" x 4 1/2" R, 1 1/8" x 4 1/2" R, 1 1/8" x 4 1/2" R, 1 3/8" x 4 1/8" R, 1 1/2" x 6" R, 1" x 4" R, 3/4" x 3" R , 1 1/4" x 3 3/4" R, 1 3/8" x 2 3/4" R, 1 1/8" x 2 1/4" R, 1" x 3" R, 3/4" x 2 1/4" R, 1" x 2" R, 5/8" x 1 7/8" R, 5/8" x 1 1/4" R, 1/2" x 2" R, 5/16" x 1 1/4" R, 5/16" x 5/8" R, 3/4" x 3" R
1 1/2", 1 3/8", 1 3/8" TOD, 1 1/4"-100, 1" TOD, 3/4" TOD, 3/4" TOD, 5/8", 1/2" CL, 1/2" CL, 5/16" CL, 5/16"
(24) Mandrels most made by clark & Lewis
1 1/2" x .049, 1 1/2" x .058, 1 3/8" x .049, 1 3/8 x .065, 1 1/4" x PHI, 1 1/4" x .065, 1 1/4" x .049, 1 1/8" x .049, 1" x .058, 3/4" x .020, 3/4" x .042, 3/4" x .049, 5/8" x .030, 1/2" x .028, 1/2" x .020, 1/2" x .025, 3/8" x .020, 5/16" x .016, 1/4 x .014, 1/4 x .020, 1/4 x .022, 1/2" x .035
1 1/8" x 2 1/4", 1 3/8 x 2 3/4", 5/8' x 1 1/4"
1 1/4", 1", 3/4", 3/8", 1/2", 5/8"
