Stanley cl 90 twin self & cross beam levelling system

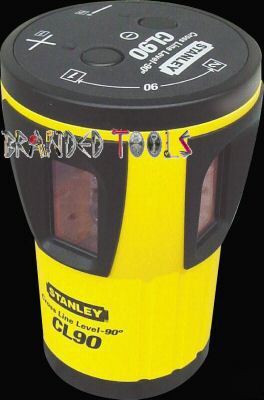

Stanley CL 90 Twin Self & Cross Beam Levelling System NEW
This self levelling tool features a laser chalk line and a laser cross line, set at 90 degrees to the other. The output, seen through two sealed windows, allows the user to carryout a wide range of levelling and layout jobs, including floor and wall tiling, suspended ceilings and wall and wall and stair rails.
* Pendulum self levelling mechanism for accuracy and peace of mind.
* Heavy duty magnetic damping compensator for rapid and stable levelling.
* "Out-of-true" level sensor automatically alerts the user that the tool is outside its +/- 4 degrees self levelling range and no longer level.
* The diodes are set at 90 degrees to each other, for accurate squaring.
* Three 635 nm diodes provide line visibility.
* Two button functions allow both cross line and vertical line to function independently.
* Comprehensive layout kit provides maximum working flexibility for a wide variety of jobs.
* Laser pole can be extended to 3.3 metres and includes spring loaded final adjusting foot for use in most interior situations.
Working Range : Up to 9 Meters interior visible range
Working Environment: Designed for interior use
Leveling Accuracy: Level and Plumb +/- 3mm @ 9 Meters
Line Accuracy : +/- 2mm @ 3 Meters (End-to-End)
Leveling Type: Pendulum Self Leveling, +/- 5 degrees
Batteries: 3 AA Alkaline batteries (included)
Battery Life: Up to 60 hours intermittent use
