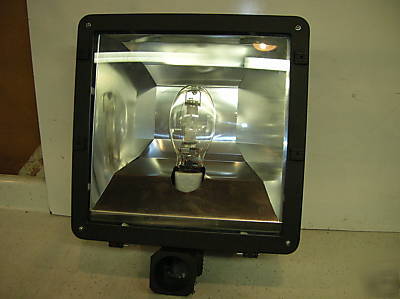

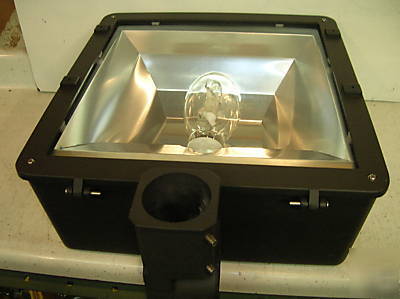

Large hid floodlight 400 w metal halide w slipfitter
LOOK!! NEW HID LARGE WIDE BEAM FLOODLIGHT 400 WATT METAL HALIDE 120 VOLT WITH SLIPFITTER, YOU WILL NOT FIND A GREAT LIGHT LIKE THIS!!
* DIMENSIONS: 16 1/2" WIDTH, 17" HEIGHT, 7" DEPTH
* CONSTRUCTION: DIE CAST HOUSING AND FRAME, CHROMATE CONVERSION COATING, TEXTURED BRONZE FINISH.
* REFLECTOR: SPECULAR ALUMINUM REFLECTOR.
* LENS: THERMAL SHOCK IMPACT RESISTANT TEMPERED GLASS.SOCKETS: MOGUL BASE PORCELAIN 4KV PULSE RATED.
* BALLAST: UNIVERSAL M400120ACAM SINGLE 120 VOLT BALLAST.
* LAMP: MOGUL BASE REDUCED ENVELOPE LAMP,LAMP OUTPUT : 36000, LAMP COLOR RENDITION 65 CRI.
* INSTALLATION: IS AN ADJUSTABLE SWIVEL MOUNT, WHICH FITS OVER A 2' POLE OR TENON WITH LOCKING ROTOR PLATE FROM 90 TO 180, UNIT HAS ENCLOSED GASKETED INTERNAL CHAMBER.
* TYPICAL MOUNTING HEIGHT: 15 TO 30 FEET, TYPICAL SPACING 3 TO 4 TIMES THE MOUNTING HEIGHT.
