14" swg 40" cc birmingham lux-1440G free delivery engin
14" Swg 40" cc Birmingham LUX-1440G Free Delivery ENGIN

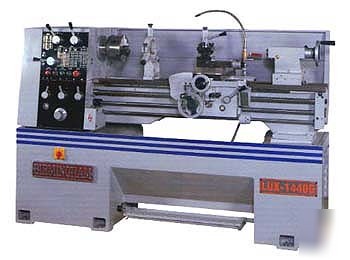

14" Swing 40" Centers Birmingham LUX-1440G Free Delivery ENGINE LATHE, 3 HP 220v 3ph - 1 ph is Ava
Model: LUX-1440G (made in Taiwan)
METRIC threads 0.25-6.0 mm x 22
Main motor, AC 3, 1.5 HP, 2 sp.
Headstock gears are hardened and ground
Headstock gears are made of SCM 21. (Cr-mo alloy steel) Respectively
3/1.5 HP 2-Speed 3 phase main motor. Wire 220V
Stand with chip tray & foot brake
The bed ways made from mehanite cast iron
Approx. dimensions - 75"L x 30"W x 58"H
Approx. net weight - 2,500 lbs.
Inch/Metric Gear Box - no change gears required
One Piece Stand with Chip Tray & Foot Brake
Single Phase motor instead of 3 phase
