Wacom tomco trans boy automatic wafer transfer machine

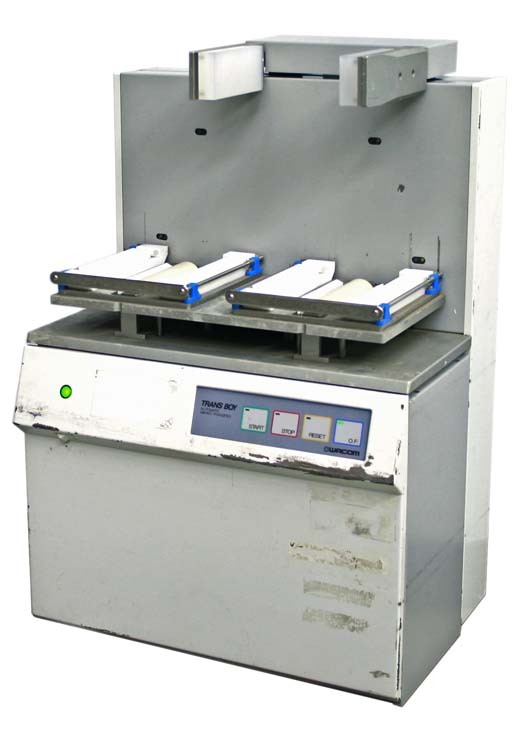

Wacom Tomco Trans Boy Automatic Wafer Transfer Machine
Exterior Dimensions (L"*W"*H") : 18*13.5*27
Wafer Transfer Machine for 2 Wafers Placed Back to Back
This system is full automatic wafer transfer machine with cassette to cassette transfer and back-to-back function.
Variable Pitch Wafer Transfer Machine (VP/CP)
When using our developed wafer transfer system, a group of 25 wafers can be transferred to a quartz or SiC boat with varying pitch, which greatly contributes to saving of time and labor, a dust-free environment and a higher yield rate.
This transfer system is made of metal and the drive section is designed with covers to be completely dust resistant. It also allows for an orientation flat aligner to be attached.
This semi-auto wafer transfer machine performs significant notch alignment of 25 pcs of 8 wafers and cassette-to-cassette transferring.
- Processing quantity: 50 / batch
- Transferring time : 60 seconds (including time for O.F alignment)
- Application: Cassette <- -> quartz boat and cassette <- -> cassette
