Troyke dmt-18 18" rotary tbl w/2 axis cross slide
TROYKE DMT-18 18" ROTARY Tbl w/2 AXIS CROSS SLIDE
TROYKE DMT-18 18" ROTARY TABLE w/2 AXIS CROSS SLIDE

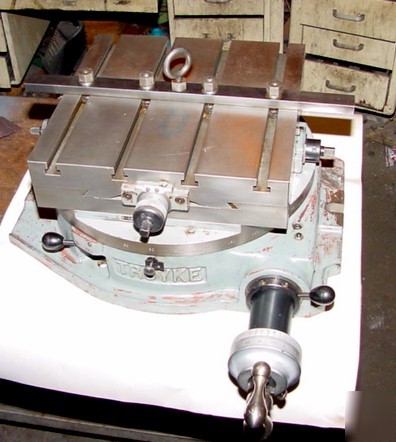

15"X 15" TROYKE CROSS-SLIDING ROTARY TABLE
THE DMT MODELS ARE A COMBINATION OF A CROSS SLIDE AND
ROTARY TABLE BUILT INTO ONE RUGGED UNIT, AFFORDING
PRECISION X, Y AND ROTARY POSITIONING
TABLE WORKING SURFACE .................... 15"X 15"
TRAVEL OF CROSS-SLIDE .................... 13"X 13"
T-SLOTS .................................. 4
BASE DIMENSIONS .......................... 20"X 20"
OVERALL HEIGHT ........................... 9-1/4"
RATIO WORM TO WORMWHEEL .................. 1:120
WEIGHT CAPACITY ON TABLE ................. 450 LBS
NET WEIGHT OF TABLE ...................... 483 LBS
- CROSS SLIDE DIALS ARE GRADUATED IN .001"
CAN BE PERMANENTLY LOCKED IF NECESSARY
- CROSS SLIDE SCALES ARE GRADUATED IN .100" INCREMENT
- ROTARY TABLE IS GRADUATED IN ONE DEGREE INCREMENT
- QUICK METHOD OF DISENGAGING WORM FROM WORMWHEEL
