Torchmate 2'X2' cnc plasma, cnc router, cnc mill

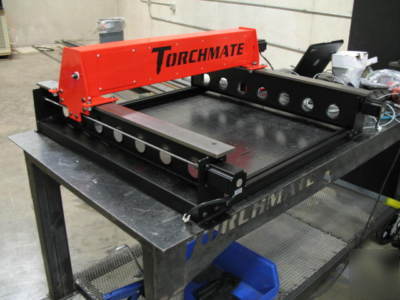

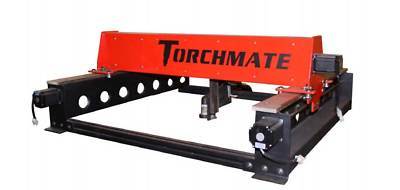

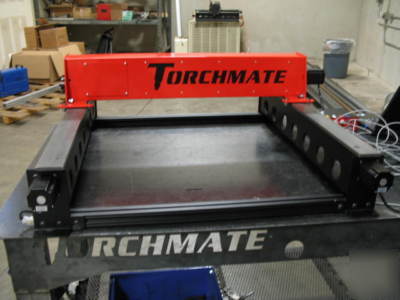

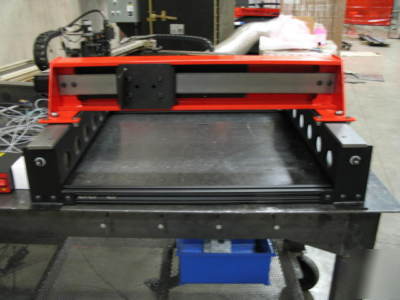

Torchmate 2x2 Prototyping System
Every once in a while a product is introduced that changes the world. The purpose of the
Torchmate 2x2 CNC Prototyping System is to do just that. The Torchmate 2x2 is
designed to change the way you make parts in your home, school or small fabrication
shop. It is designed to be versatile, mobile and easy to use. It is designed to bring CNC

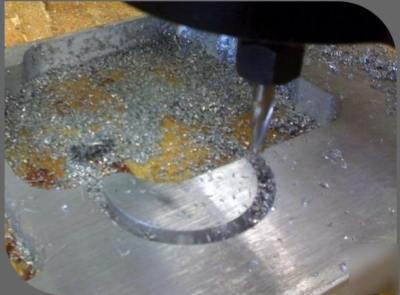

Plasma Cutting, CNC Routing, CNC Drilling, CNC Milling and CNC Engraving to you
in one tight little package. Everyone knew that the time would eventually come when
shops everywhere could look at CNC Technology and Robotics as another tool, just like
a Mill, Lathe, Router, Bandsaw or Drill Press rather than some daunting thing that is out
of their reach. That time has come.
Every Torchmate 2x2 CNC Prototyping System is designed as a multi-use platform to
which you may mount secondary tooling for which you would like robotic control and
repeatablility. The Torchmate Driver software is included with every system, into which
you will import your file to be cut. A generic mounting plate is included to accept your
chosen tool holder, be it for plasma cutting, routing, drilling, engraving or milling.
Included: Routing package and hand torch
Portable table top Model Features
Generic mounting plate to accept your chosen tool
Relay to turn on/off plasma torch or other closed circuit
5 piece fabricated steel construction
26 sealed ball bearings for linear motion
2 amp micro-stepping stepper motors
Two x-axis drives and motors and one y-axis drive and
PC based control software with USB interface
15 amp/ 110 volt for controls
Machine can be re-indexed to cut materials larger than
Up to 13 in. thick (Tool dependent)
Compatible with most plasma cutters
Call to verify compatibility with your plasma cutter
The Torchmate CAD program was developed
specifically to create shapes for cutting. It contains
every feature needed, including dxf importation,
automatic kerf compensation, automatic lead-ins
Everything in CAD Lite plus nesting, scanning and
The Torchmate CAD program with additional
advanced features such as advanced tool pathing for
In addition to being a full-blown computer assisted
design program, BobCAD renders 2D images into
three dimensional shpes. It then generates G-code to
create the 3D pieces with Torchmate s automated z-
axis in conjunction with a router, roto-ZIP tool,
90 day warranty on electronics, parts, and software
Lifetime unlimited free technical support
