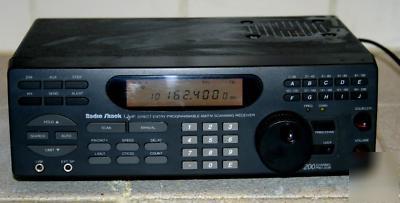

Radio shack 200 channel scanner pro-2036
Radio Shack Direct Entry Progammable AM/FM Scanning Receiver
Good working condition comes with reprinted manaul and power supply.
Type: HF/VHF/UHF receiver/scanner
Frequency range: 29-54 / 108-174 / 380-512 / 806-956 MHz (USA)
This RS model was Uniden made, and comparable to their BC890XLT
This scanner is capable of performing an auto-sort. It does not
re-arrange the order in which the frequencies are stored. However, it
simply sorts internally all frequencies in the block(s) to be scanned in
(200-0128) Specifications Faxback Doc. # 18515
VHF-Lo...........................................29-50 MHz (in 5kHz steps)
Ham..............................................50-54 MHz (in 5kHz steps)
Aircraft......................................108-136 MHz (in 25kHz steps)
Government.....................................136-144 MHz (in 5kHz steps)
Ham............................................144-148 MHz (in 5kHz steps)
VHF-Hi.........................................148-174 MHz (in 5kHz steps)
Ham/Government..............................406-450 MHz (in 12.5kHz steps)
UHF-Lo......................................450-470 MHz (in 12.5kHz steps)
UHF-Hi......................................470-512 MHz (in 12.5kHz steps)
CHANNELS OF OPERATION:.............Any 20 channels in any band combinations
AM: 20 dB Signal-to-Noise ratio at 60% modulation 108-136 MHz..2.0 micro V
FM: 20 dB Signal-to-Noise ratio at 3kHz deviation 29- 54 MHz..0.5 micro V
29- 54 MHz.................................................50 dB at 40MHz
108-136 MHz................................................50 dB at 120MHz
136-174 MHz................................................50 dB at 154MHz
406-512 MHz..................................................Not specified
11 kHz...............................................................-6 dB
15 kHz..............................................................-50 dB
10.85 MHz.................................................60 dB at 155 MHz
SCANNING RATE..............................................10 Channels/sec
DELAY TIME.......................................................2 seconds
MODULATION ACCEPTANCE.............................................. 12 kHz
IF FREQUENCIES........................................0.85 MHz and 450 kHz
FILTERS...................................................1 crystal filter
..........................................................1 ceramic filter
SQUELCH SENSITIVITY......................Threshold: Less than 1.0 micro V
......................................................Tight: (S+N)/N 25 dB
ANTENNA IMPEDANCE..................................................50 ohms
AUDIO POWER...........................1.7 watts maximum, 1.5 watts nominal
BUILT-IN SPEAKER............................3" (77 mm) 8 ohms,dynamic type
...............................................AC 120 Volts 60 Hz 10 watts
CURRENT DRAIN.........................................AC 60 mA (squelched)
........................................AC 75 mA (full volume unsquelched)
DIMENSIONS............2 3/8" (60 mm) x 9 7/16" (240 mm) x 7 3/32" (180 mm)
