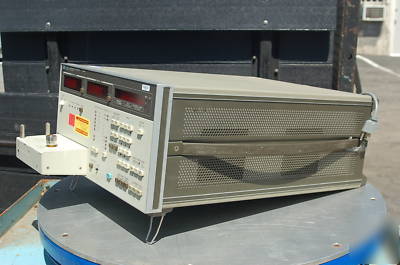

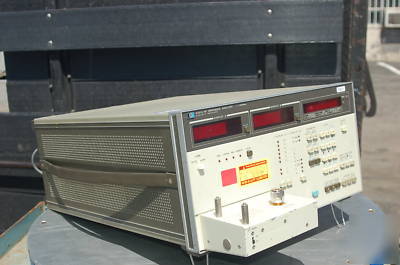

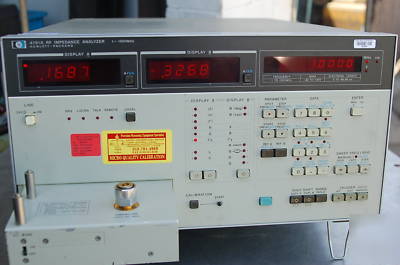

Hp agilent 4191A 1GHZ rf impedance analyzer hewlett
S/N 1930J01137 - Fixture Accepts 16092A ,16093A,16093B
Agilent 4191A 1Ghz RF Impedance Analyzer Hewlett Packard
The 4191A RF Impedance Analyzer measure 14 parameters with a maximum resolution of 4.5 digits. The internal synthesizer provides variable frequencies from 1 MHz through 1000 MHz covering the UHF, VHF, and video bands with automatic sweep capability. An internal dc bias supply with auto sweep function covers the voltage range of 40 V in 10 mV steps.
The HP 4191A permits reliable measurements over a wide measuring range. Its outstanding repeatability, frequency response, and accuracy are made possible by a unique error-correction capability and specially designed test fixtures. These features allow the HP 4191A to be used in evaluating electronic materials, components, and circuitry.
* 1 to 1000 MHz variable test frequency with sweep capability
* Direct reading of |Z|-q, |Y|-q, |G|-q; L*C-R*G*D*Q, R-X, G-B, Gx-Gy
* High resolution - 4.5 digit max
* Wide measuring range - 1 m - 100 k (|Z|)
* Versatile, easy-to-use test fixtures
