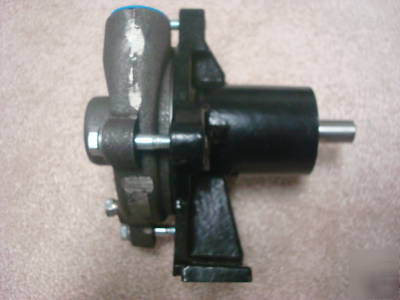

Centrifugal pump head, high volume, hp 1/3
Storage Warehouse Clearance Sale-All item Must go! Lowest Price Guarantee!
Centrifugal Pump Head, High Volume, HP 1/3, Impeller Type Semi Open, Impeller Material Cast Iron, Outlet 3/4 In, Inlet 1 In, Max Pressure 18.2 PSI, Cast Iron, Seals Buna N, Shaft Material SS, Bearings Ball, For Use With Nonflammable and Nonabrasive Liquids, Port Rotation 4 Position, Max Temp -40 to 210 F, GPM of Water @40 Ft of Head 5, Max Head 42 F
* Wetted Materials: CI, Buna-N, Carbon, Ceramic,18-8 SS
* Impeller Material: Cast-Iron
* Housing Material: Cast Iron
* Volute Material: Cast Iron
* Shaft Material: 316 Stainless Steel
* Seal Type: Mechanical Carbon on Ceramic
* Seal Application: Long Life When Not Run Dry or Pumping Abrasives
* Max. Liquid Temp. (F): 200
* GPM of Water @ 10 Ft. of Head: 41
* GPM of Water @ 15 Ft. of Head: 37
* GPM of Water @ 20 Ft. of Head: 34
* GPM of Water @ 30 Ft. of Head: 25
* GPM of Water @ 40 Ft. of Head: 10
* Best Efficiency GPM @ Head (Ft.): 30 @ 26
* Best Efficiency Range GPM @ Head (Ft.): 25-37 GPM @ 30-25 Ft.
* Max. Case Pressure (PSI): 200
* Max. Fluid Viscosity: 100 SSU
* Drain Plug: Easily Accessible
* Manufacturers Warranty Length: 1 Year
* Application: High Flow at Low Head Pressure
* For Use With: Nonflammable and Nonabrasive Liquids
