Allen-bradley ab 1784-ktx plc comm. interface card

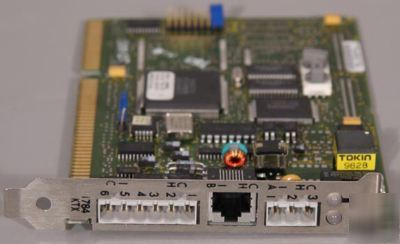

Rockwell Automation/Allen-Bradley 1784-KTX PLC Communication Interface Card
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Rockwell Automation/Allen-Bradley and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
We do not have the expertise to test this card. It was removed from a computer from a system we scrapped for contractual reasons.
The Unit's Serial Number Tag Reads:
Link to the Manual: Allen-Bradley 1784-KTx Series Interface Card Manual
The 1784-KTx communication interface card is an ISA half-sized card.
The 1784-KTX and -KTXD Cards Features:
* Communicate with nodes on Data Highway networks, including PLC-2 , PLC-3 , and on Data Highway Plus networks, including PLC-5 , and SLC 5/04 processors, and SLC 5/01 , SLC5/02, and SLC 5/03 processors (only via 1784KA5)
* Communicate with SLC processors on DH-485 networks
* ct as a remote I/O scanner
The 1784-KTx performs data transmission, management, and local network diagnostics. The interface to the host processor is through a board-resident dual-port memory.
Active Node on These Networks: DH+ and/or DH-485(2)
Acts as Remote I/O Scanner: Yes
