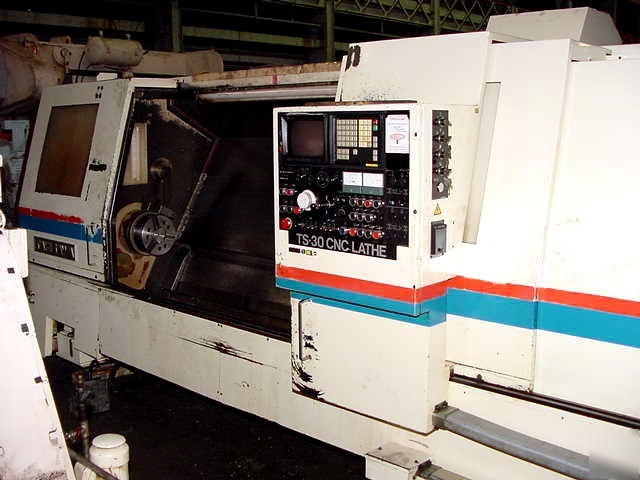

25" x 80" takisawa ts-30 cnc lathe w/fanuc 11T, steady
25" x 80" TAKISAWA TS-30 CNC LATHE w/FANUC 11T, STEADY
MAX SWING ......................... 25"
MAX SWING OVER CARRIAGE ........... 18.5"
MAX TURNING DIAMETER .............. 15.75"
MAX DISTANCE BETWEEN CENTERS ...... 79.28"
SPINDLE BORE DIA .................. 3.26"
SPINDLE NOSE ...................... A2-8"
SPINDLE SPEEDS .................... 25-3000 RPM
GEAR RANGES ....................... 2
TURRET CONFIGURATION .............. 12 STATION
X-AXIS ............................ 8.865"
Z-AXIS ............................ 80.9"
RAPID TRAVERSE (X-AXIS) ........... 236 IPM
RAPID TRAVERSE (Z-AXIS) ........... 472 IPM
TAILSTOCK DIA ..................... 4.3"
TAILSTOCK STROKE .................. 6.7"
MAIN MOTOR ........................ 30 HP
MACHINE WEIGHT .................... 19,000 LBS
