Touch screen handheld multi-parameter patient monitor

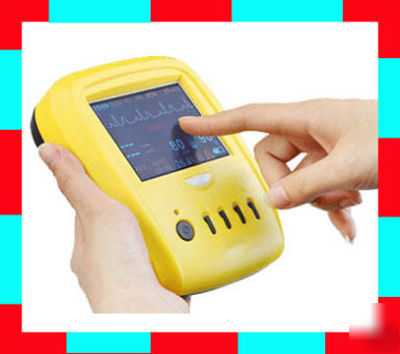

Touch Screen Handheld Multi-Parameter Patient Monitor
200997151720248.jpg picture by medeshop2010 200997151734393.jpg picture by medeshop2010
Five parameters: ECG, NIBP, SPO2, PR, TEMP.
Waveform: ECG and SPO2 waveforms.
1. Palm, compact, easy for carrying and operation;
2. Clear and bright color LCD with real time display;
3. Friendly user interfaces with touch screen;
4. Intelligent Measuring of ECG/NIBP/SpO2/PR/PLETH/TEMP;
6. Utility PC software package for long time monitoring, web transferring, history data uploading/review/printing/storage;
8. Built-in rechargeable Li-ion battery, up to 5-hour power supply;
9. Automatic shutdown for power saving.
Input 3- Lead ECG cable, standard AAMI cable connector
Sweep Speed: 12.5, 25, and 50 mm/s
Frequency Response: None filter: 0.05 100Hz (-3dB), filter: 0.5 40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation
Alarm Mode: Audible and visual alarm
Accuracy: 2 %(70% 99%), unspecified (0% 69%)
Measuring and Alarm Range:0 250bpm
Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 300 (mmHg)
Over-pressure Protection: Adult 300mmHg, Pressure Resolution: 1mmHg
Input: Body surface thermal-sensitive resistor temperature sensor
Maximum Trend Time: Continuous 129 hours
Software picture for reference:
2009414144615148.jpg picture by medeshop2010 2009418115117283.jpg picture by medeshop2010
Color palm patient monitor main unit 1 pc
3-lead ECG cable (include surface TEMP probe) 1 pc
Software CD 1 pc ( Free software CD in 2010)
