Opthos microwave generator mpg-4
MICROWAVE GENERATOR MPG-4; WITH 4 FT. CABLE AND POWER METERS (new) $ 7060.00
Bought but never used, $3,500 obo
Unit is as new and complete with all cables etc that it was supplied with.
The OPTHOS MPG-4 and MPG-4M (4M is shown, has a couple of extra knobs. see http:// ) microwave generators provide reliable, highly stable sources of microwave power in a compact unit. Both models feature separate power meters for the simultaneous monitoring of forward and reflected power levels. The power may be varied continuously from 0 - 120 watts. Ripple in the RF signal is about 1%. Output is through a standard Type-N connector mounted on the front panel. A 4 ft. coaxial cable is included with each unit at no extra charge.
MPG generators are suitable for a wide variety of applications, such as the production of microwave discharges in gases. Microwave power is coupled to the discharge by means of an antenna or tuned cavity. The separate power meters on the generators greatly facilitate tuning of cavities as the effect of any tuning adjustment on both forward and reflected powers is immediately seen.
The MPG-4 model is a standard CW generator. It is identical to the MPG-4M model except that it does not have the capability of modulating the RF signal.
The MPG-4M generator can be operated in either a CW mode or a modulated mode. In the modulated mode the output signal is a square wave that can be varied in frequency from 7 to 800 Hz. The duty cycle can be varied from 5% to 85%. The modulation signal can be fed to a lock-in amplifier and oscilloscope via a BNC connector on the front panel.

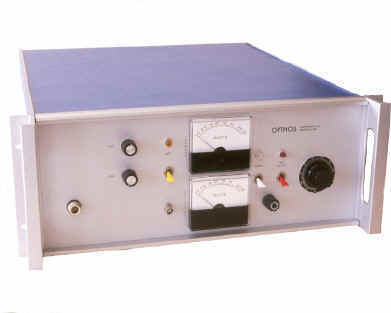

Rack mounts (as pictured) are included in the standard price.
TECHNICAL SPECIFICATIONS FOR MODELS MPG-4 AND MPG-4M
Power input: 105-130 VAC, 50-60 Hz, 4 A (220 VAC model also available)
Power output: Continuously variable, 0 - 120 watts
Meters: Separate meters for simultaneous monitoring of forward and reflected powers, calibrated in watts.
Output connector: Type N; female; mounted on front panel.
Modulator mode (MPG-4M): Square wave RF signal, frequency continuously variable from 70 to 800Hz, duty cycle continuously variable from 5% to 85%. May be switched off for use in CW mode. BNC connector for connection of modulator to lock-in amplifier and oscilloscope.
Accessories: Generator is supplied with 4 ft. coaxial RF cable, Type-N male connectors both ends; power cord; and manual. Rack mounting handles included at no extra charge.
Width: 19 inch, including handles
Depth: 21 inch, including handles
Weight: MPG-4: 36 lb.; MPG-4M: 37 lb.
Weights for 220 V models: add 8 lb.
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
