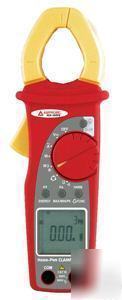

Power clamp-on amprobe #acd-56HPQ
Power Clamp-on Amprobe ACD-56HPQ
* Active, Reactive and Apparent Power Single/Three Phase
* Power Factor, Cos Single/Three Phase/Energy
* Frequency (with test leads and jaw)
* Phase sequence with single wire (patented)
* Voltage and Current Harmonics up to 25th with THD%
* S P E C I F I C A T I O N S
1.6 - 599.9V (1% Rdg + 3 LSD)
AC Peak Voltage @ 1ms response time:
10 - 850V (5% Rdg + 10 LSD)
0 - 399.9V (1% Rdg + 3 LSD)
AC Peak Current @ 1ms response time:
10 - 800A (5% Rdg + 10 LSD)
0 499.9/999/1999 (1% Rdg + 5 LSD)
Frequency (with test leads and jaw):
40.0 - 399.9Hz (0.5% Rdg + 1 LSD)
Voltage/Current Harmonics:
THD, Individual harmonics 1 to 25 Harmonics 1 to 16 @ (10.0% Rdg + 5 dgt)**
Active, Reactive and Apparent
0.20 - 1.00 (2% Rdg + 2 LSD)
