Photon gear? optical laser scanning objective lens
Photon gear? Optical Laser Scanning Objective Lens

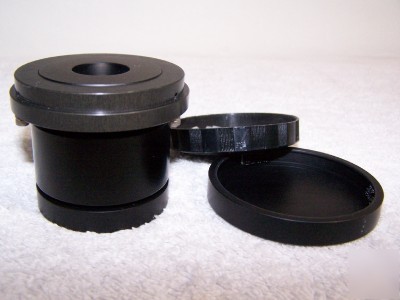

Used Photon gear? (not marked, but matches their MFG design work) Laser Scanning Objective Lens. The lens is tinted color. The pupil end measures .20mm I.D. and the larger lens is 40mm (output). It is H-53mm x 65mm in diameter. The focal point is approximately of 40mm from the front. Based on like lenses we found, we believe it to be a 355nm (not marked on lense). It comes with two lense covers. It is being sold as pictured.
Laser scan lenses are designed, built and tested for wavelengths from the DUV to mid-IR. All lens are fully certified with interferometer measurements over the required pupil and field. These lens can operate at wavelengths from the DUV (266 nm) to the NIR.
