> Olympus set cv-160 clv-160 and cf-Q160L colonoscope
Olympus set cv-160 clv-160 and cf-Q160L colonoscope
Includes CV-160 Processor, CLV-160 Light Source, CF-Q160L Colonoscope
with MAJ-843 Pigtail and MAJ-846 Monitor cable and
Pictures of Olympus Evis Exera I 160 set
ClicPic Photos copyright 2003 Zgrum Medical. Do not use without permission.
These are the actual pictures of this item. Click on images to see larger center image. Click on center image for an even larger more detailed view. If you'd like an even larger more detailed picture, e-mail Zgrum Medical at ****@zgrum.com and we will be happy to provide additional pictures

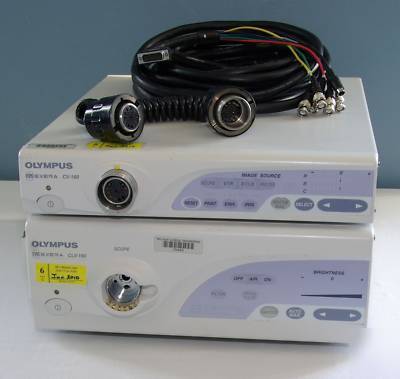

Upgrade your system to the Olympus EVIS EXERA I 160 colonoscope set including the Olympus CV-160 processor (1) with keyboard, CLV-160 Video Light Source (1) , and the Olympus CF-Q160L (1) with the MAJ-843 pigtail (1) and MAJ-846 monitor cable (1) in excellent condition ready for surgery.
Hablamos espa ol. Env enos un correo a ****@zgrum.com para m s informaci n.
This Olympus CV-160 is the second to last generation of video processors by Olympus designed to maximize the capabilities of the Evis Exera 160 scopes with high resolution images, improved color reproduction and larger display size. It also features an improved video signal processing enabling observation of minute details without increasing noise for more accurate treatment, full height mode using the full vertical area of the monitor screen, 35% more compact that previous models and newly designed keyboard.
The CV-160 can also be used with Evis Exera Bronchoscopes as well many of the 180, 140, 130 and 100 scopes. It includes a scope ID function for the 160 and 180 scopes and the ability to capture images directly into a computer.
For full specifications see the Olympus Brochure here: Olympus-CV-160-Video-Processor
This Olympus CLV-160 is the second to last generation of light sources by Olympus designed to maximize the capabilities of the Evis Exera 160 scopes featuring a powerful 300W xenon lamp with an improved condenser achieving nearly 30% more light intensity than the CLV-U40 which. It provides sufficient brightness even when retroflexing the scope tip. With its improved light adjustments it provides for appropriate brightness even when observing at extremely close ranges. The CLV-160 is 35% smaller than the previous generation light source CLV-U40 and it also includes simple membrane switches and an emergency 100W Halogen lamp.
The CLV-160 light source is compatible with conventional Olympus color CCD videoscopes and fiberscopes as well as the Evis Exera Bronchoscopes. It will work with most of the 180, 140, 130 and 100 series scopes.
For full specifications see the Olympus Brochure here: Olympus-CLV-160-Light-Source
Enjoy this Olympus colonoscope CF-Q160L that comes with the set. It is in very good condition ready for surgery. Original shiny insertion tube with white numbers and excellent image. No buckles except next tot he boot. It features superior image quality, 12.8mm insertion tube outer diameter, 3.7mm biopsy instrument Channel, extra wide 140 degree field of view, scope ID function, and 168 cm Working Length. These "Q" model scopes are 'preferred' because of their full size images. Serial # 2102021
Up-Down 180 Right-Left 160. See pictures for actual angulations

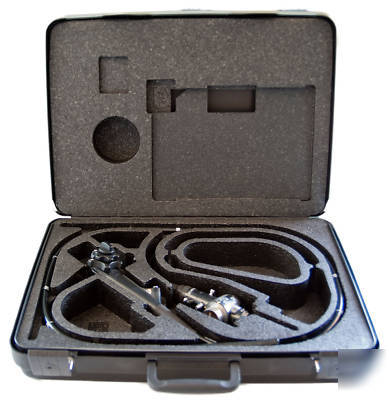

Olympus CF-Q160L colonoscope and Olympus case - see pictures
Very good functional and cosmetic condition other than a couple of buckles next the boot.

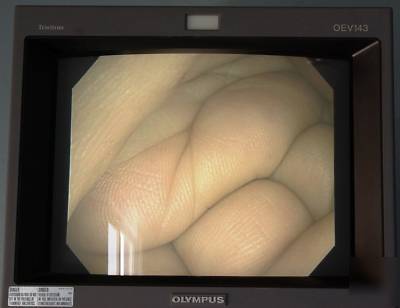

Excellent, Image is flawless (see pictures)
Original OEM Olympus Insertion tube in excellent condition, white numbers and shiny insertion tube other than a couple of buckles next to the boot
Excellent functional and cosmetic condition. Ready for your Surgery.
All functionality operational.
For any and all questions call us at (***) 495-0391 and/or write us to ****@zgrum.com. Si llama desde Mexico, nos puede llamar al telefono en Mexico D.F. (***) 525-4158
The equipment comes with a 6 months replace/repair warranty that is valid with proper usage, storage and sterilization.
