> New 1 terminal block 12 position 600V 75 amps -loc c-15

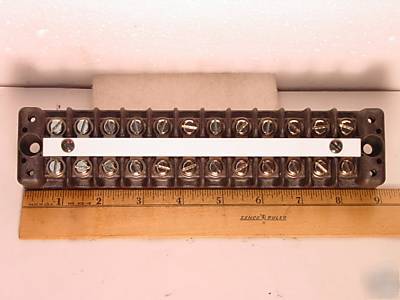

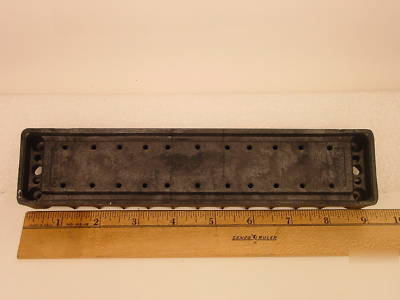

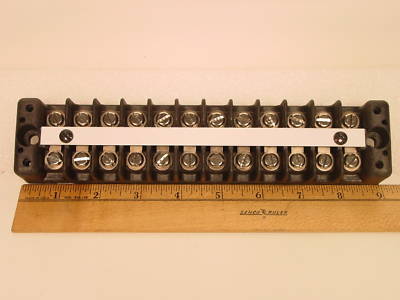

New 1 terminal block 12 position 600V 75 amps -loc c-15

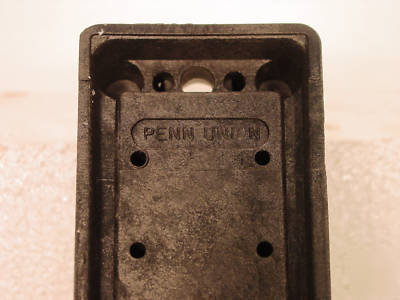

PENN-UNION GLASS REINFORED PLASTIC
WE HAVE MORE THAN 20 IF INTRESTED
Now In: Penn-Union Products Miscellaneous Items Terminal Blocks
6000-SCS - Reinforced Terminal Block - Short Circuiting
6012-SCS - Glass Reinforced Plastic Terminal Block - Short Circuiting
Wide slot opening (9/16") to take wires with either a soldered or solderless terminal lug
Molded of glass reinforced thermoplastic engineering resin
Jumper bars are stamped of .062 inch hard rolled copper, plated to prevent corrosion and cannot be removed from terminal block

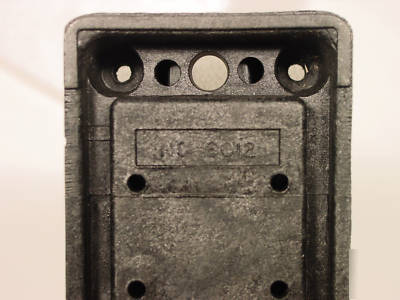

Holes are tapped at two corners for attachment of cover
Washer-head screws, No. 10-32, are nickel plated
White marking strips, of special durable vinyl are furnished

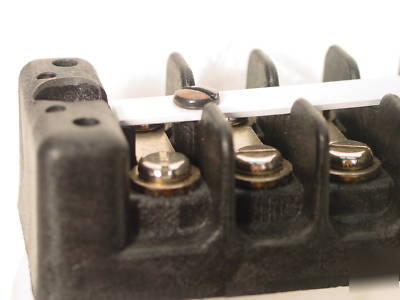

Shorting strip of hard rolled copper and pierced to take a shorting pin that makes contact with the jumper bar
Two shorting pins furnished as standard
This provides for short circuiting of two of the circuits passing through the block
Extra shorting pins, SCP-1 may be ordered separately
For short circuiting block with cover instead of plastic marking strip, suffix catalog number with "-SCC"
75 amps with #4 max crimp lug 600V 75 C
45 amps with #8 max wire 600V 75 C
